UMFT600X-B

评估板, FIFO至USB 3.0桥接, 16位先进先出总线, FMC连接器, B版芯片

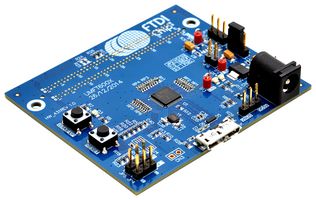

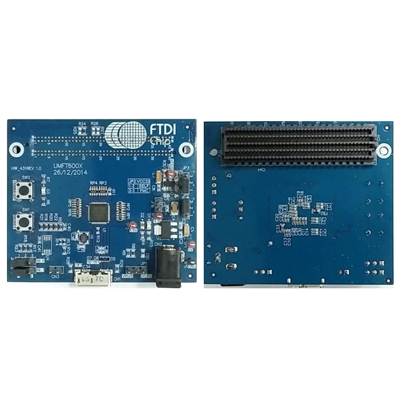

The from FTDI is a FT600 evaluation/development module incorporates FMCLPC connector for interfacing FTDI"s FT600 USB 3.0 Superspeed IC with external hardware. It allows for bridging a FIFO bus to a USB3.0 host and evaluating the functionality of the FT600. As a daughter card, the UMFT600X must work with a FIFO master board which has a FMC connector. The module is designed to plug in to most FPGA development platforms supplied by vendors such as Xilinx. It supports 2 parallel slave FIFO bus protocols multi-channel FIFO / 245 synchronous FIFO with a data "burst" rate of up to 400MB/s.

.

16bit FIFO bus, FMC low pin count connector with B version chip

.

Support for USB3.0 super speed 5Gbps, USB high speed 480Mbps, USB 2.0 full speed 12Mbps

.

4 IN channels and 4 OUT channels on FIFO bus connectivity

.

Vendor class USB device with D3xx driver support on the UMFT600X for generic high speed applications

.

Supports multi voltage I/O 1.8V, 2.5V and 3.3V

.

FMC connector is compatible with most Xilinx FPGA reference design boards

.

Multi powered options

.

Hardware reset and remote wake up
