V56ZT8P

ZT系列 45 VDC 35V RMS 110V 钳位 1000A 3900pF 径向引线式压敏电阻

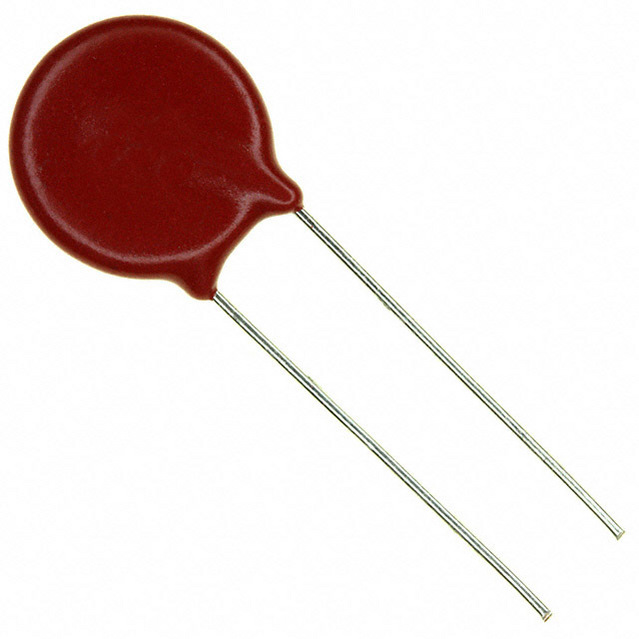

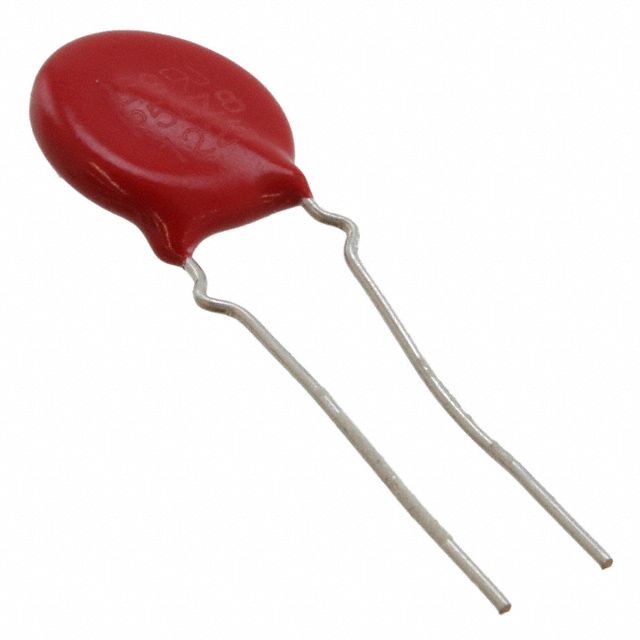

When different voltages are applied to this MOV from will change resistance. This device"s clamping current is 10 A and clamping voltage is 110 V. This part has a pitch of 8.5 mm. Its maximum surge current is 1000 A. This voltage dependent resistor has an operating temperature of -55 to 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its capacitance value is 0.00484uF. This device is made with metal oxide technology. The maximum AC voltage rating is 35 VAC and the maximum DC voltage rating is 45 VDC. This varistor has a voltage of 62 V. This product is 22.5 mm tall and 5 mm deep with a diameter of 17 mm.
