V480LS40AP

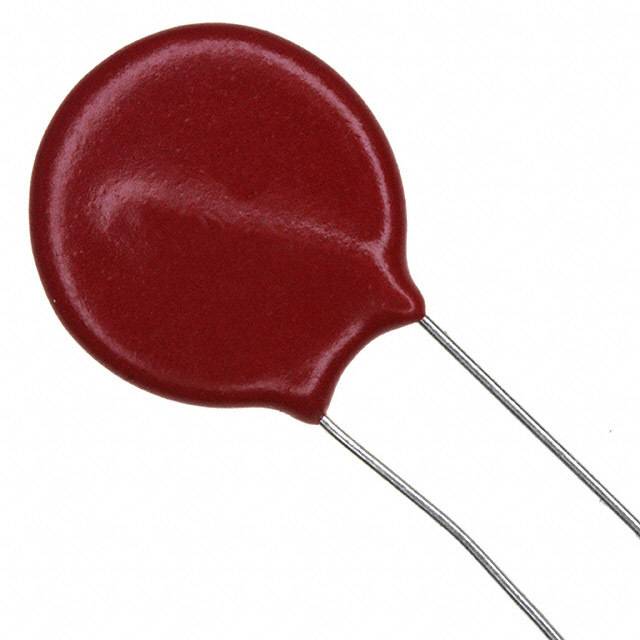

Varistor, 640V, 105J, Through Hole Mount, RADIAL LEADED, HALOGEN FREE AND ROHS COMPLIANT

750 V 4.5 kA 变阻器 1 电路 通孔 圆片式 14mm

得捷:
VARISTOR 750V 4.5KA DISC 14MM

立创商城:
V480LS40AP

艾睿:
A nonlinear resistor this V480LS40AP MOV manufactured from Littelfuse will change resistance. This device&s;s clamping current is 50 A and clamping voltage is 1240 V. Its maximum surge current is 4500 A. This part has a pitch of 8.5 mm. This voltage dependent resistor has an operating temperature of -55 to 85 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This device utilizes metal oxide technology. The maximum AC voltage rating is 480 VAC and the maximum DC voltage rating is 640 VDC. This product is 20.5 mm tall and 7.3 mm deep with a diameter of 17 mm. This varistor has a voltage of 825 V. Its capacitance value is 270pF.

Chip1Stop:
Var MOV 480VAC/640VDC 4500A 825V Thru-Hole Radial T/R

Verical:
Var MOV 480VAC/640VDC 4500A 825V Thru-Hole Radial T/R
