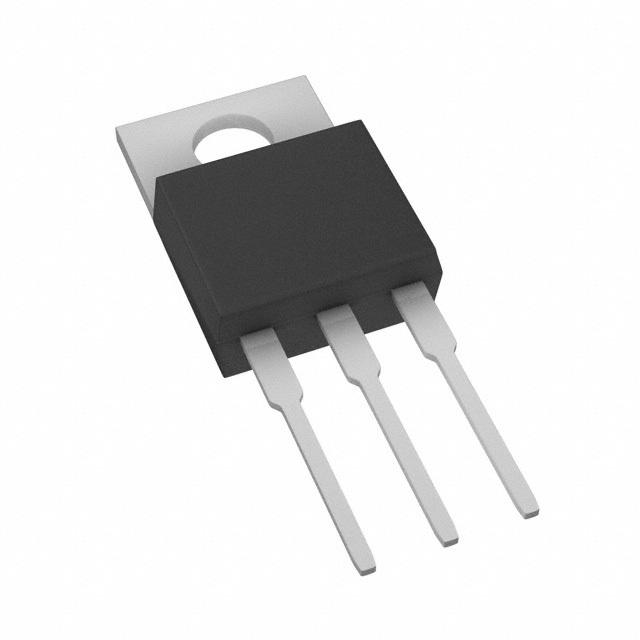

VISHAY VS-12TTS08PBF 晶闸管, 800 V, 15 mA, 6.5 A, 10 A, TO-220AB, 3 引脚
The is a 3-pin High Voltage Phase Control Thyristor, designed for medium power switching and phase control applications. The glass passivation technology used has reliable operation up to 125°C junction temperature. Typical usage is in input rectification crowbar soft start and AC switch in motor control, UPS, welding and battery charge.
- .
- 8A Maximum average on-state current
- .
- 1.2V Maximum on-state voltage drop
- .
- 16.2mR On-state slope resistance
- .
- 150V/µs Maximum rate of rise of off-state voltage
- .
- 100A/µs Maximum rate of rise of turned-on current
针脚数 3
保持电流Max 30 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
工作结温 -40℃ ~ 125℃
安装方式 Through Hole
引脚数 3
封装 TO-220-3
高度 9.02 mm
封装 TO-220-3
重量 2.00 g
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
制造应用 Power Management, 电源管理, Motor Drive & Control, Maintenance & Repair, 维护与修理, 电机驱动与控制
RoHS标准 RoHS Compliant
含铅标准 Lead Free
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
VS-12TTS08PBF Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
12TTS08 威世 | 完全替代 | VS-12TTS08PBF和12TTS08的区别 |
12TTS08PBF 威世 | 完全替代 | VS-12TTS08PBF和12TTS08PBF的区别 |
