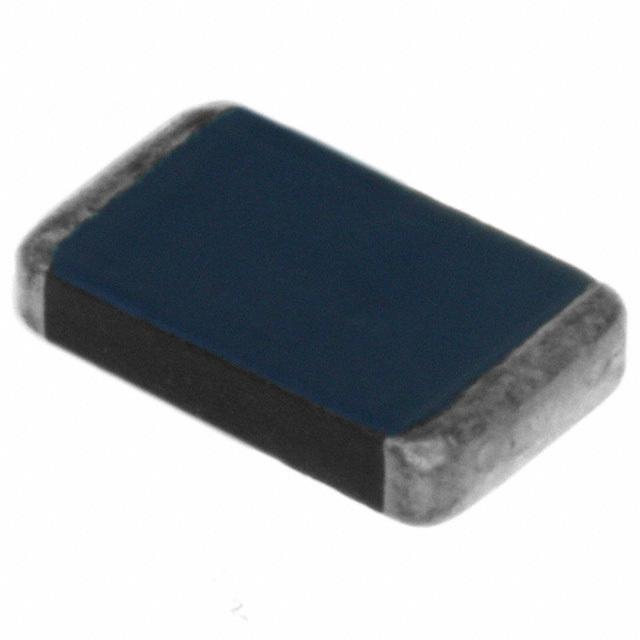

V200CH8

CH系列 175 VDC 130V RMS 340V 钳位 250A 180pF 表面贴装 压敏电阻

变阻器 电路 表面贴装，MLCV 2-SMD，无引线

立创商城:
V200CH8

得捷:
VARISTOR 200V 250A 2SMD NO LEAD

贸泽:
压敏电阻 130V 250A 110pF 13 Inch Reel

艾睿:
Apply different voltages to this V200CH8 MOV from Littelfuse in order to change resistance of it. This device&s;s clamping current is 10 A and clamping voltage is 340 V. Its maximum surge current is 500 A. This voltage dependent resistor has an operating temperature of -55 to 125 °C. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This product is 8.51 mm long, 2.03 mm tall and 5.26 mm deep. The maximum AC voltage rating is 130 VAC and the maximum DC voltage rating is 175 VDC. This varistor has a voltage of 200 V. Its capacitance value is 180pF. This device is made with metal oxide technology.

Chip1Stop:
Var MOV 130VAC/175VDC 500A 200V SMD T/R

Newark:
# LITTELFUSE  V200CH8  TVS Varistor, MOV, 130 V, 175 V, CH Series, 340 V, 3220 [8552 Metric], Metal Oxide Varistor MOV
