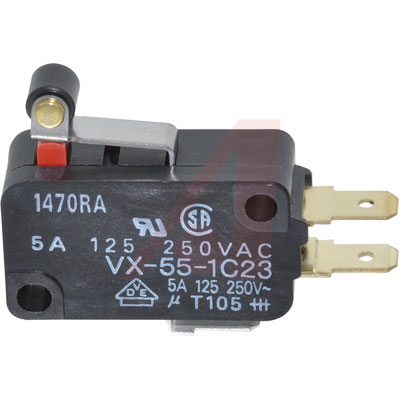

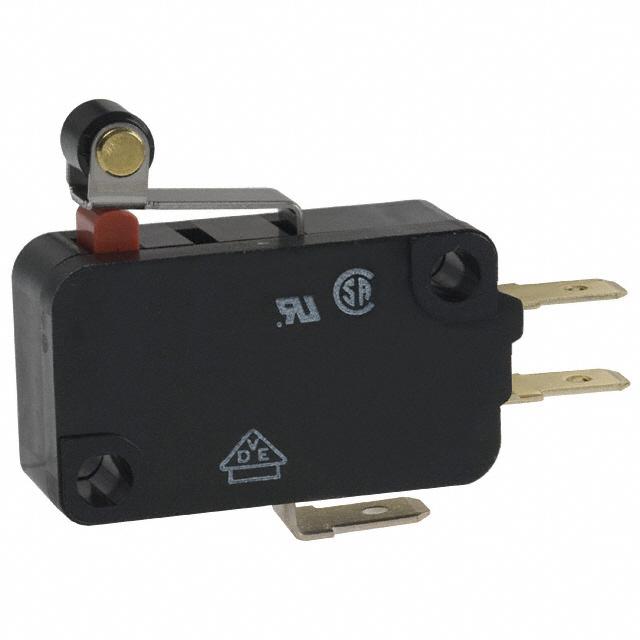

VX-55-1C23

Omron 微动开关 - 低操作力紧凑型基本开关，超低操作力超低操作力 V3 型外壳 符合 RoHs 触点额定值：5A @ 250V 交流电阻 触点配置：单刀双掷 焊接/快速连接端子 #187 ### 认可**认证：UL，CSA，VDE，TUV，SEMKO**### V3型

微动 - 低操作力

紧凑型基本开关，超低操作力

超低操作力

V3 型外壳

符合 RoHs

触点额定值：5A @ 250V 交流电阻

触点配置：单刀双掷

焊接/快速连接端子 #187

### 认可

**认证：UL，CSA，VDE，TUV，SEMKO**

欧时:
Switch,SPDT,short roller lever,QC tm,

贸泽:
基本/快动开关 Short hinge rllr lvr #187 Tab 50g

艾睿:
If you&s;re looking for rapid switching to close your circuit use this VX-55-1C23 snap-action switch from Omron. It has a SPDT configuration. This device has a maximum current rating of 5 A @ 250VAC. This snap action switch has a minimum operating temperature of -25 °C and a maximum of 80 °C. The VX-55-1C23 snap action switch has a quick connect termination style. This product is 37.8 mm long, 28 mm tall and 10.3 mm deep. The maximum AC voltage rating is 250 VAC.

Allied Electronics:
SWITCH, MINIATURE, SNAP ACTION, 5A, SHORT HINGE ROLLER LEVER, TAB TERMINAL

Chip1Stop:
Switch Snap Action N.O./N.C. SPDT Short Hinge Roller Lever Quick Connect 5A 250VAC 250VDC 0.59N Screw Mount

Newark:
# OMRON ELECTRONIC COMPONENTS  VX-55-1C23  Microswitch, VX Series, SPDT, Quick Connect, Solder, 5 A, 250 VAC, 250 VDC

MASTER:
Switch Snap Action N.O./N.C. SPDT Short Hinge Roller Lever 5A 250VAC 0.59N Screw Mount Quick Connect

Online Components:
Switch Snap Action N.O./N.C. SPDT Short Hinge Roller Lever 5A 250VAC 0.59N Screw Mount Quick Connect

Electro Sonic:
Switch Snap Action N.O./N.C. SPDT Short Hinge Roller Lever 5A 250VAC 0.59N Screw Mount Quick Connect
