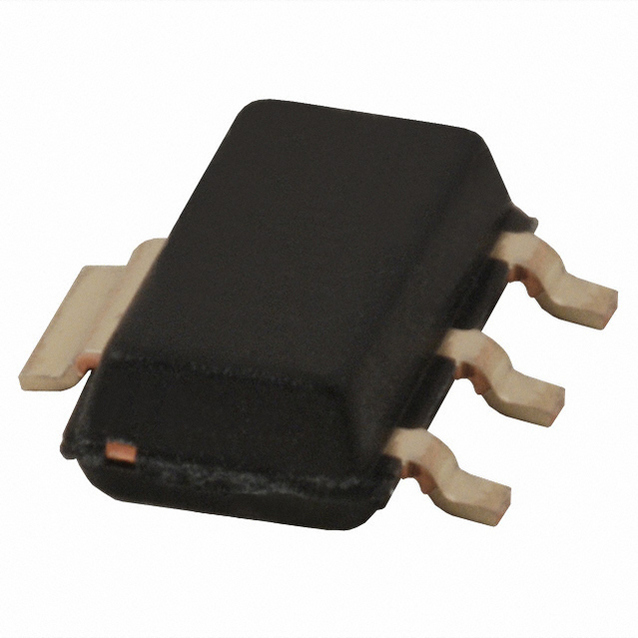

HONEYWELL VF526DT 霍尔效应传感器, 双极性, 5 mA, SOT-89, 4 引脚, 3.4 V, 24 V
** TruStability® SSC Series Pressure Sensors**
The TruStability® Standard Accuracy Silicon Ceramic SSC series are piezo-resistive silicon pressure sensors. They have have been designed to offer digital outputs for reading pressure which will be over a specified pressure and temperature range. The devices are fully calibrated during manufacture via an on-board ASIC and are compensated for sensing offset, sensitivity, temperature effects and non-linearity. Calibrated output values for pressure are updated at approximately 2 kHz. The units have been calibrated to operate within a temperature range of -20 to +85 °C and operate from a single power supply of either 3.3 or 5.0 V DC. The range includes units for measuring differential and gage pressure, differential versions allow application of pressure to either side of the sensing diaphragm whilst gage versions are referenced to atmospheric pressure and provide an output proportional to pressure variations from atmosphere. Potential applications include: Medical - Ventilators, anesthesia machines, spirometers, nebulizers, hospital room air pressure Industrial - VAV Variable Air Volume control, static duct pressure, clogged HVAC Heating, Ventilation, and Air Conditioning filter detection, HVAC transmitters, indoor air quality
电源电压DC 3.40V min
输出电流 5 mA
供电电流 14 mA
针脚数 4
带宽 1.00 kHz
输出电流Max 5 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
电源电压 3.5V ~ 24V
电源电压Max 24 V
电源电压Min 3.4 V
安装方式 Surface Mount
引脚数 4
封装 SOT-89-3
高度 1.32 mm
封装 SOT-89-3
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
