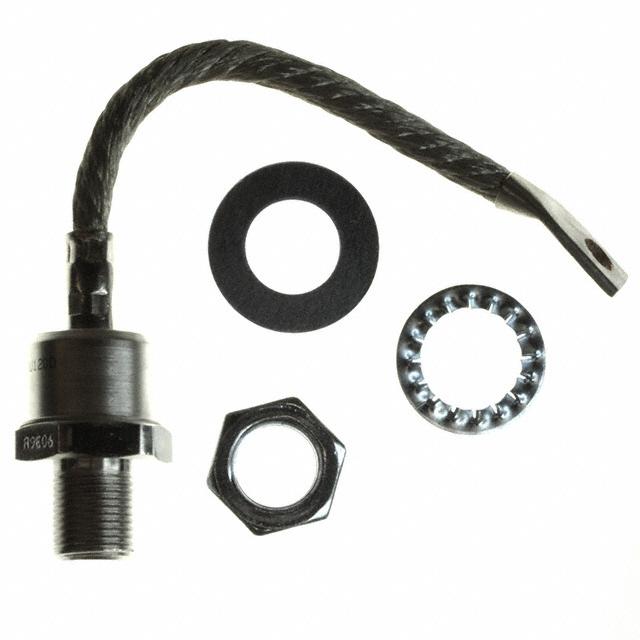

VISHAY VS-240U80D 二极管模块, 800 V, 320 A, 1.33 V, 单路, VS-24 Series
The is a Standard Recovery Diode with high surge current capability. It is suitable for battery chargers, welders, machine tool controls, high power drives, medium traction applications and freewheeling diodes.
正向电压 1.33V @750A
正向电流 320 A
最大正向浪涌电流(Ifsm) 4.7 kA
正向电压Max 1.33 V
正向电流Max 320 A
工作温度Max 180 ℃
工作温度Min -40 ℃
安装方式 Chassis
引脚数 2
封装 DO-9
长度 36.93 mm
宽度 32 mm
高度 74.3 mm
封装 DO-9
工作温度 -40℃ ~ 180℃
产品生命周期 Active
包装方式 Bulk
制造应用 Power Management, Industrial, Motor Drive & Control
RoHS标准 RoHS Compliant
含铅标准 Lead Free
