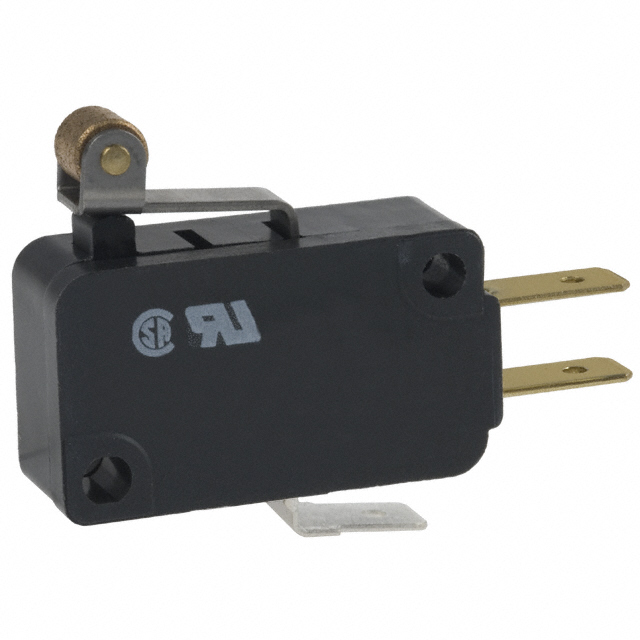

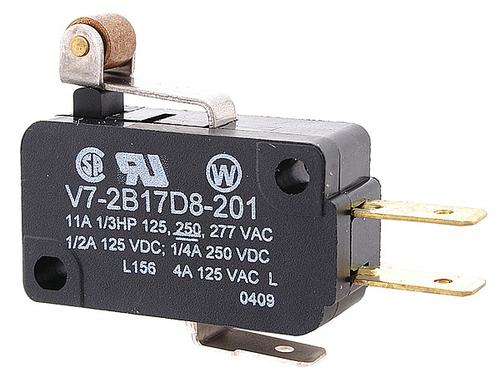

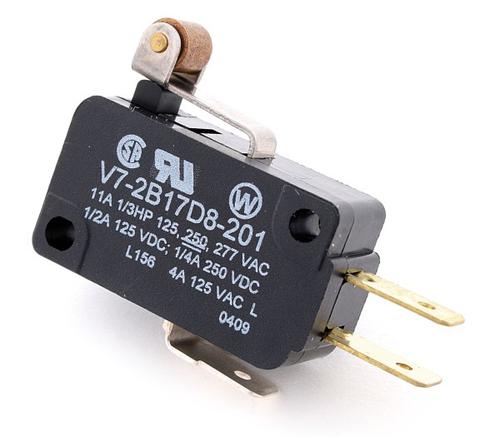

HONEYWELL V7-2B17D8-201 微动开关, V7系列, SPDT, 快速连接，焊接, 11 A, 250 VAC, 250 VDC
The is a single-pole double-throw SPDT premium Miniature Basic Switch with a roller lever actuator and quick-connect/solder terminations. The MICRO SWITCH™ V7 series premium basic switch is used for simple or precision ON/OFF, end of limit, presence/absence and manual operator interface application needs. The V7 switch can reliably control logic level electrical loads from less than 0.1A to power duty switching up to 25A.
- .
- Actuation on time
- .
- Reliable performance in harsh conditions
- .
- Long life cycle rating
- .
- Design flexibility
接触器类型 Roller Lever
额定电流 11 A
触点类型 SPDT
针脚数 2
触点额定电流 15.1 A
额定电流Max 11A @277VAC
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压 277 VAC
安装方式 Chassis, Quick Connect
封装 201
长度 39.4 mm
宽度 10.2 mm
高度 28.4 mm
封装 201
触点材质 Silver
重量 8.00 g
外壳材质 Polyester
产品生命周期 Active
包装方式 Bulk
制造应用 Test & Measurement, Consumer Electronics, Industrial, HVAC, Medical, 通信与网络, 消费电子产品, Communications & Networking, 工业, 医用, 测试与测量
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8536509055
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
V7-2B17D8-201 Honeywell 霍尼韦尔 | 当前型号 | 当前型号 |
V7-1C17D8-201 霍尼韦尔 | 类似代替 | V7-2B17D8-201和V7-1C17D8-201的区别 |
VX551C23 欧姆龙 | 功能相似 | V7-2B17D8-201和VX551C23的区别 |
V-10G5-1C24-K BY OMI 欧姆龙 | 功能相似 | V7-2B17D8-201和V-10G5-1C24-K BY OMI的区别 |
