33uH ±20% 390mA
Inductor Power Shielded Wirewound 33uH 20% 100KHz Ferrite 390mA 1.4Ohm DCR T/R
得捷:
FIXED IND 33UH 390MA 1.4 OHM SMD
艾睿:
This power VLF4012AT-330MR39 surface mount inductor from TDK is ideal for saving valuable space on a PCB. This SMD inductor has an operating temperature range of -40 °C to 105 °C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This device utilizes wirewound technology. This product is 4 mm long, 1.2 mm tall and 3.8 mm deep. It has a tolerance of 20%. Its test frequency is 100K Hz. This SMD inductor has a maximum DC current of 390mA typ with a maximum resistance of 1.4 Ohm. It has an inductance of 33u H.
安富利:
Ind Power Shielded Wirewound 33uH 20% 100KHz 390mA T/R
Chip1Stop:
Ind Power Shielded Wirewound 33uH 20% 100KHz 390mA T/R
Verical:
Inductor Power Shielded Wirewound 33uH 20% 100KHz Ferrite 0.39A 1.4Ohm DCR T/R
MASTER:
Inductor Power Shielded Wirewound 33uH 20% 100KHz Ferrite 390mA 1.4Ohm DCR T/R
Online Components:
Inductor Power Shielded Wirewound 33uH 20% 100KHz Ferrite 390mA 1.4Ohm DCR T/R
Electro Sonic:
Inductor Power Shielded Wirewound 33uH 20% 100KHz Ferrite 390mA 1.4Ohm DCR T/R
额定电流 390 mA
容差 ±20 %
电感 33 µH
电阻 1.20 Ω
屏蔽 Yes
电感公差 ±20 %
测试频率 100 kHz
电阻DC) 1.4 Ω
工作温度Max 105 ℃
工作温度Min -40 ℃
电阻DC Max 1.4 Ω
安装方式 Surface Mount
引脚数 2
封装 Nonstandard

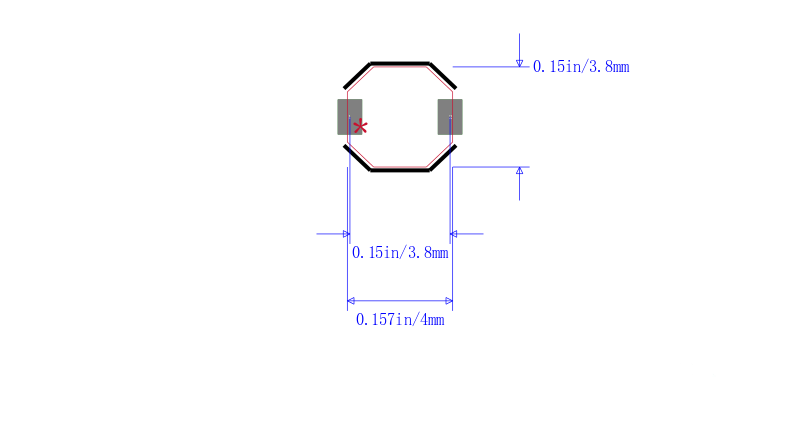

长度 3.7 mm
宽度 3.5 mm
高度 1.2 mm
封装 Nonstandard
工作温度 -40℃ ~ 105℃
产品生命周期 Obsolete
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
HTS代码 8504508000
