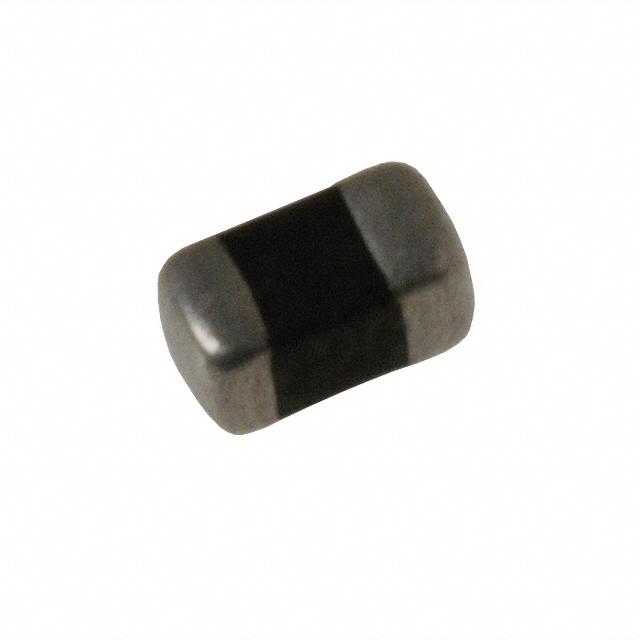

V14MLA0603WA

VARISTOR 18.7V 30A 0603

ML Varistor Series

The ML Series family of Transient Voltage Surge Suppression devices is based on the Multilayer fabrication technology. These components are designed to suppress a variety of transient events, including those specified in IEC 61000-4-2 or other standards used for Electromagnetic Compliance EMC. The ML Series is typically applied to protect integrated circuits and other components at the circuit board level.

The wide operating voltage and energy range make the ML Series suitable for numerous applications on power supply, control and signal lines.

The ML Series is manufactured from semiconducting ceramics, and is supplied in a leadless, surface mount package. The ML Series is compatible with modern reflow and wave soldering procedures.

It can operate over a wider temperature range than zener diodes, and has a much smaller footprint than plastic-housed components.

Littelfuse Inc. manufactures other Multilayer Series products. See the MLE Series data sheet for ESD applications, MHS Series data sheet for high-speed ESD applications, the MLN for multiline protection and the AUML Series for automotive applications.

Features

• Leadless 0402, 0603, 0805, 1206 and 1210 Chip Sizes

• Multilayer Ceramic Construction Technology

•-55oC to +125oC Operating Temperature Range

• Operating Voltage Range VMDC = 5.5V to 120V

• Rated for Surge Current 8 x 20µs

• Rated for Energy 10 x 1000µs

• Inherent Bi-directional Clamping

• No Plastic or Epoxy Packaging Assures Better than 94V-0

   Flammability Rating

• Standard Low Capacitance Types Available

Applications

• Suppression of Inductive Switching or Other Transient Events Such as EFT and Surge Voltage at the Circuit Board Level

• ESD Protection for Components Sensitive to IEC 61000-4-2, MIL-STD-883C Method 3015.7, and Other Industry Specifications See Also the MLE or MLN Series

• Provides On-Board Transient Voltage Protection for ICs and Transistors

• Used to Help Achieve Electromagnetic Compliance of End Products

• Replace Larger Surface Mount TVS Zeners in Many Applications
