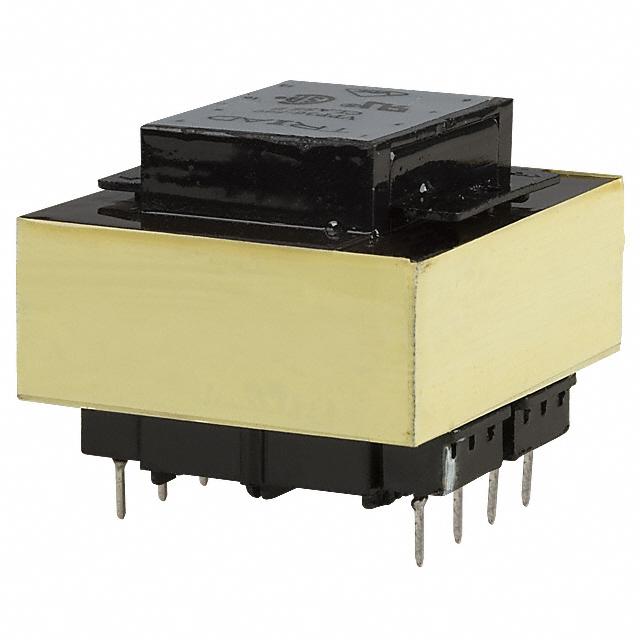

Power Transformer 4000Vrms Dual Prim. Dual Sec. 230V/115V Prim. 16V/8V Sec. Through Hole
TRIAD Magnetics PC mount world Series transformers incorporate a dual bobbin construction with an insulating shroud, both made of a high temperature material that exceeds UL flammability requirements. These units are designed with very high isolation between the primary and secondary, and also, between each winding and the core. Since the dual bobbin construction effectively reduces capacitance, electrostatic shielding is not required. PC Mount transformers are available with ratings from 2.5 VA to 56.0 VA and have dimensionally accurate pin placement for through hole PC board mounting. All World Series transformers meet U.S. and international standards including CSA, IEC, VDE and UL requirements, and, therefore, have universal application.电源电压DC 115 V
额定电流 2.5 A
额定功率 20 VA
输入电压DC 115 V
输出电压 16.0 V
输出电流 2.50 A
隔离电压 4000 Vrms
额定功率Max 20 VA
安装方式 Through Hole
引脚数 8
封装 DIP
长度 47.6 mm
宽度 57.1 mm
高度 41.3 mm
封装 DIP
重量 408.23 g
工作温度 30 ℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504314035
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
VPP16-1250 Triad Magnetics | 当前型号 | 当前型号 |
VPP16-1250-B Triad Magnetics | 功能相似 | VPP16-1250和VPP16-1250-B的区别 |
