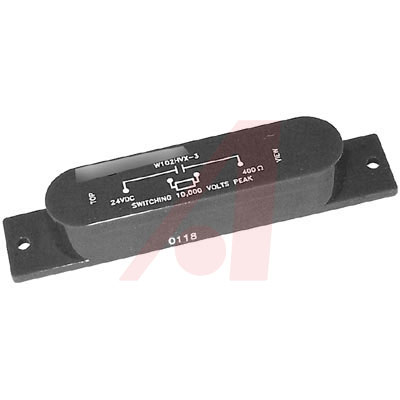

W102HVX-3

STRUTHERS-DUNN W102HVX-3 Reed Relay, SPST-NO, 24VDC, 102HVX Series, Panel, 400Ω, 5mA

SPST-NO Contact, 5 to 10 mA, 102HVX Series High Voltage Switching Relays

* 200 Milliohms Max. contact resistance

* Any operating position

* Epoxy encapsulated enclosure

Epoxy encapsulated high voltage reed, SPST-NO tungsten contacts.

Allied Electronics:
Relay; Reed; High Voltage; SPST-NO; Cur-Rtg5mA; Ctrl-V 24DC; Vol-Rtg 10000V

Newark:
# STRUTHERS-DUNN  W102HVX-3  Reed Relay, SPST-NO, 24 VDC, 102HVX Series, Panel, 400 ohm, 5 mA

Electro Sonic:
Electromechanical Relay 24VDC 400Ohm 0.005A SPST-NO 114.3x22.2x19mm Flange Switching Relay
