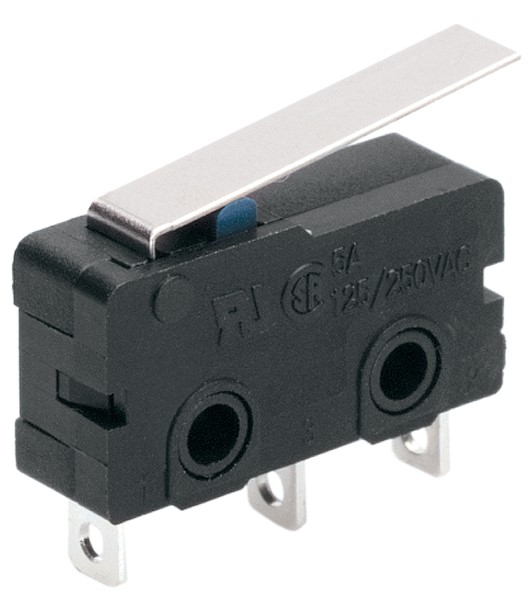

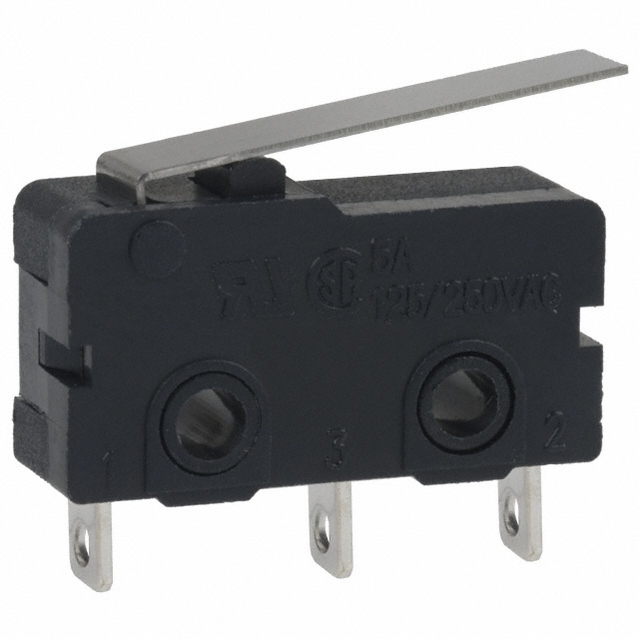

HONEYWELL ZM50E10C01 微动开关, ZM系列, SPDT, 焊接, 5 A, 250 VAC, 30 VDC
The is a single-pole double-throw SPDT subminiature Basic Switch with a straight lever actuator and silver contacts. This ZM series switch comes with a polyamide nylon housing and supports solder termination. MICRO SWITCH™ standard basic switch used for simple or precision ON/OFF application needs. This switch combines small size and light weight with ample electrical capacity and long life.
接触器类型 Straight Lever
额定电压AC 125 V
额定电流 5A AC
触点类型 SPDT
额定电流Max 5 A
工作温度Max 125 ℃
工作温度Min -40 ℃
安装方式 Chassis, Solder Lug
封装 Nylon Polyamide
长度 19.8 mm
高度 10.6 mm
封装 Nylon Polyamide
触点材质 Silver Alloy
工作温度 -40℃ ~ 120℃
外壳材质 Nylon
产品生命周期 6000 Cycles
包装方式 Bulk
制造应用 测试与测量, 医用, Communications & Networking, 时钟与计时, Test & Measurement, Computers & Computer Peripherals, Clock & Timing, 通信与网络, Medical, HVAC, 计算机和计算机周边
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
HTS代码 8536509055
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ZM50E10C01 Honeywell 霍尼韦尔 | 当前型号 | 当前型号 |
ZM50D10B01 霍尼韦尔 | 完全替代 | ZM50E10C01和ZM50D10B01的区别 |
SS-5GL 欧姆龙 | 功能相似 | ZM50E10C01和SS-5GL的区别 |
111SM1-T 霍尼韦尔 | 功能相似 | ZM50E10C01和111SM1-T的区别 |
