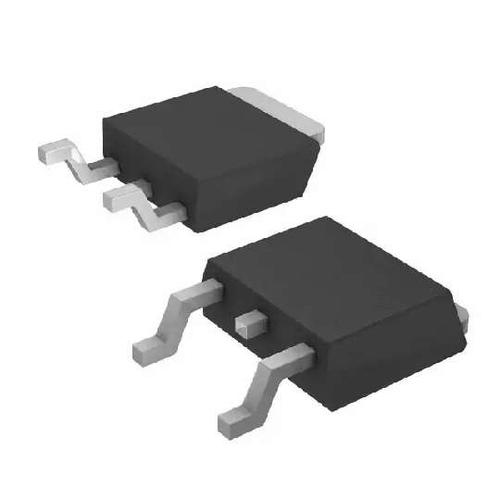

Mosfet n-Ch 100V 2.4A Dpak
Description and Applications
This MOSFET has been designed to minimize the on-state resistance and yet maintain superior switching performance, making it ideal for high efficiency power management applications.
• Motor control
• DC-DC Converters
• Power management functions
• Uninterrupted power supply
Features and Benefits
• Fast switching speed
• Low input capacitance
• “Green” Component and RoHS compliant Note 1
• Qualified to AEC-Q101 Standards for High Reliability
额定电压DC 100 V
额定电流 2.90 A
极性 N-CH
耗散功率 2.11W Ta
输入电容 274 pF
栅电荷 3.00 nC
漏源极电压Vds 100 V
连续漏极电流Ids 3.50 A
上升时间 1.70 ns
输入电容Ciss 274pF @50VVds
额定功率Max 2.11 W
耗散功率Max 2.11W Ta
安装方式 Surface Mount
封装 TO-252-3
封装 TO-252-3
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
ZXMN10A11K Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
