Littelfuse 242 系列Littelfuse 242 系列危险区挡板网格熔丝,提供的一系列产品,设计用于增强在可能发生爆炸的环境中使用电子设备的安全性。 应用包括电气连接、电气部件和测试设备。### 印刷电路板线端 - 超微型### 印刷电路板线端所有熔丝均为热塑聚酰胺主体
242 系列
Littelfuse 242 系列危险区挡板网格熔丝,提供的一系列产品,设计用于增强在可能发生爆炸的环境中使用电子设备的安全性。 应用包括电气连接、电气部件和测试设备。
### 印刷电路板线端
所有熔丝均为热塑聚酰胺主体
欧时:
### Littelfuse 242 系列Littelfuse 242 系列危险区挡板网格熔丝,提供的一系列产品,设计用于增强在可能发生爆炸的环境中使用电子设备的安全性。 应用包括电气连接、电气部件和测试设备。### 印刷电路板线端 - 超微型### 印刷电路板线端所有熔丝均为热塑聚酰胺主体
立创商城:
0242.250UAT1
艾睿:

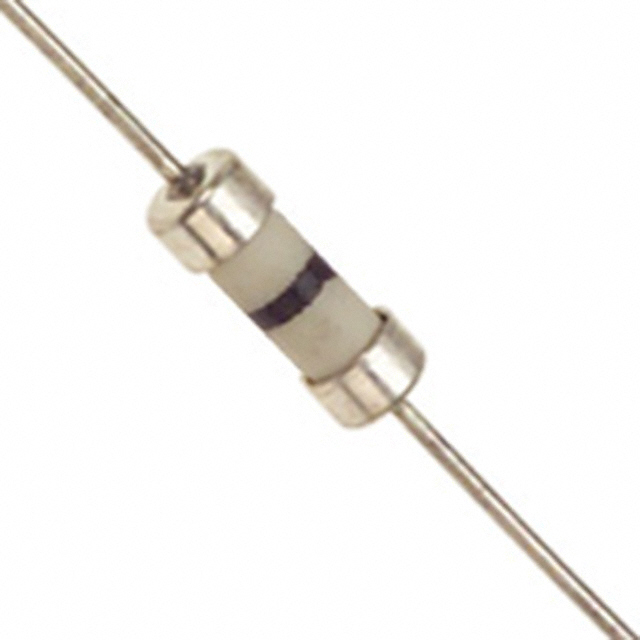

Prevent damage to electrical circuits with this 0242.250UAT1 fuse from Littelfuse which will provide overcurrent protection. This device has a current rating of 0.25. This fuse has a minimum operating temperature of -40 °C and a maximum of 125 °C. It has 2 terminals. The 0242.250UAT1 fuse has an axial termination style. This product is 8.4 mm long with a diameter of 3.02 mm. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 250 VDC.
Allied Electronics:
Fuse 250V BARRIER PT 0.250A
Chip1Stop:
Fuse Fast Acting 0.25A 250V Axial 3.02 X 8.4mm Ammo Pack
TME:
Fuse: fuse; quick blow; axial; 250mA; 250V; 3x8,4mm; 242
Verical:
Fuse Fast Acting 0.25A 250V Axial 3.02 X 8.4mm Ammo UL
Newark:
# LITTELFUSE 0242.250UAT1 FUSE, BARRIER NETWORK, 250MA
额定电压DC 250 V
额定电压AC 250 V
额定电流 0.25 A
电阻 1.6 Ω
工作温度Max 125 ℃
工作温度Min -40 ℃
额定电压 250 V
额定电压DC Max 250 V
额定电压AC Max 250 V
安装方式 Through Hole
引脚数 2
封装 Axial
长度 8.4 mm
直径 3.02 mm
封装 Axial
颜色 Black
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Box TB
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
