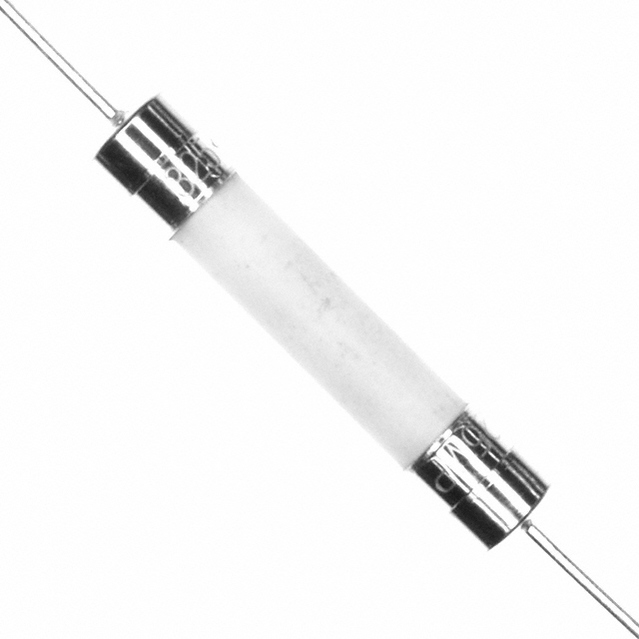

三百二十六分之三百二十五系列无铅3AB ， SLO- Blo®保险丝 325/326 Series Lead-Free 3AB, Slo-Blo® Fuse
The Slo-Blo 325 series Time Lag Fuse made of ceramic body with nickel-plated brass end caps. It permits high interrupting and voltage ratings. It is used as supplementary protection in appliance or utilization equipment to provide individual protection for components or internal circuits.
- .
- In accordance with UL Standard 248-14
- .
- Available in cartridge and axial lead format and with various forming dimensions
- .
- -55 to 125°C Operating temperature range
额定电压DC 125 V
额定电压AC 250 V
额定电流 30 A
电阻 0.0019 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
额定电压AC Max 250 V
安装方式 Axial
引脚数 2
封装 3AB, 3AG, 1/4" x 1-1/4" Axial
长度 32.72 mm
直径 6.99 mm
封装 3AB, 3AG, 1/4" x 1-1/4" Axial
产品生命周期 Active
包装方式 Bulk
制造应用 Industrial, Safety
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/06/16
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0325030.MXP Littelfuse 力特 | 当前型号 | 当前型号 |
0326030.HXP 力特 | 完全替代 | 0325030.MXP和0326030.HXP的区别 |
0326030.MXP 力特 | 完全替代 | 0325030.MXP和0326030.MXP的区别 |
0325030.HXP 力特 | 类似代替 | 0325030.MXP和0325030.HXP的区别 |
