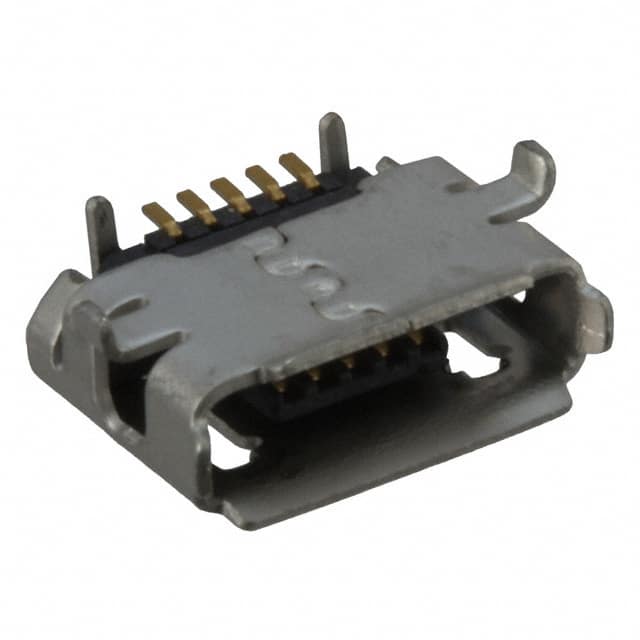

0.65毫米（ 0.026 “ ）间距的Micro-USB AB插座，直角，底部安装， SMT ，无铅 0.65mm .026" Pitch Micro-USB AB Receptacle, Right Angle, Bottom Mount, SMT, Lead Free
USB - 微 AB 型 - 插座 5 位 表面贴装，直角，通孔
得捷:
CONN RCPT MICRO USB AB 5P SMD RA
艾睿:
Use the micro USB type ab 0475890001 audio and video connector from Molex to make your application work properly. This RCP connector&s;s 5 contacts that are made out of copper alloy and plated with gold over palladium nickel over nickel. It has a right angle body orientation. This connector has a single port. It has a receptacle type gender. It has a maximum voltage rating of 100 VAC. Its pitch is 0.65 mm. This device has a maximum current rating of 1 A/contact. 0475890001 is housed in liquid crystal polymer. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its 5 terminals use the solder termination method. This part has a minimum operating temperature of -20 °C and a maximum of 85 °C. This product is 3 mm tall.
安富利:
Conn Micro USB RCP 5 POS 0.65mm Solder RA SMD 5 Terminal 1 Port Embossed T/R
Chip1Stop:
Conn Micro USB RCP 5 POS 0.65mm Solder RA SMD 5 Terminal 1 Port Embossed T/R
Verical:
Conn Micro USB 2.0 Type AB RCP 5 POS 0.65mm Solder RA SMD 5 Terminal 1 Port Micro-USB T/R
