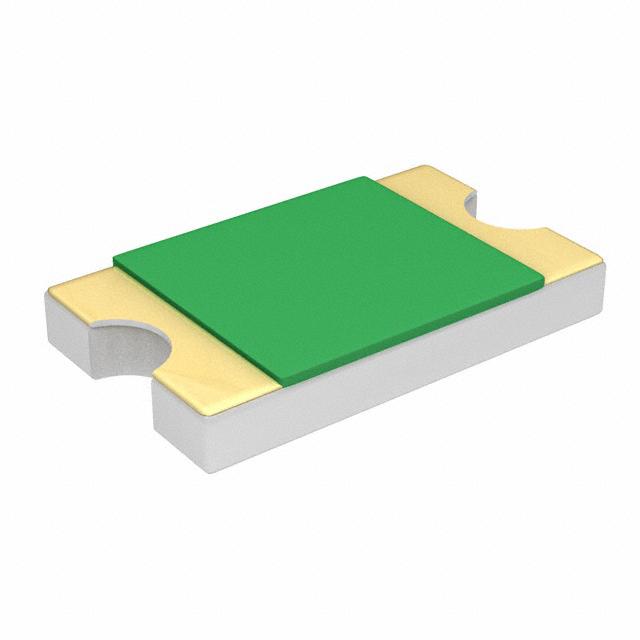

保险丝, 自复式 PTC, 6VDC, 0.75A, SMD
This PTC resettable fuse from Bel Fuse is ideal for low current and low voltage ratings. This device has a maximum current rating of 40. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 2.3Max mm long, 1.25Max mm tall and 1.5Max mm deep.
跳闸时间 200 ms
耗散功率 0.6 W
电阻 0.35 Ω
保持电流 0.75 A
跳闸电流 1.5 A
额定电流Max 40 A
保持电流Max 750 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 6 VDC
额定电压 6 VDC
安装方式 Surface Mount
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 1.25 mm
封装公制 2012
封装 0805
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0ZCK0075FF2E BEL Fuse 百富电子 | 当前型号 | 当前型号 |
0ZCE0075FF2E 百富电子 | 完全替代 | 0ZCK0075FF2E和0ZCE0075FF2E的区别 |
