0218.125TXP

0218.125TXP图片1
0218.125TXP图片2

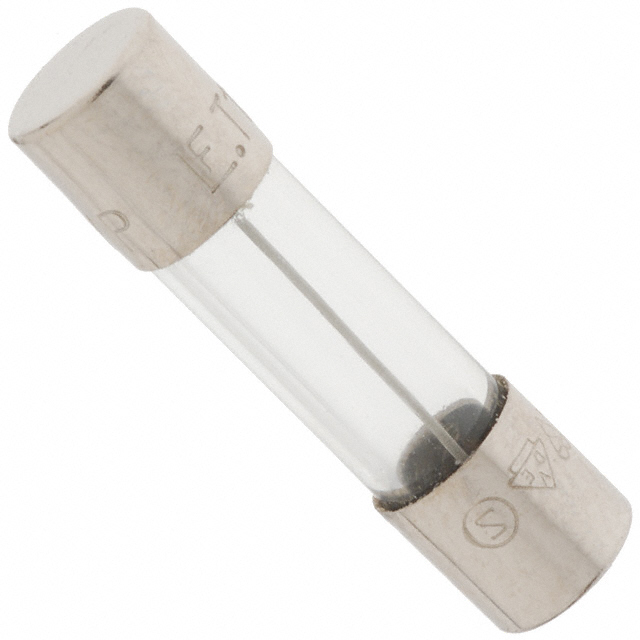

0218.125TXP图片3
0218.125TXP概述

Fuse Miniature Slow Blow Acting 0.125A 250V Holder Axial Melf 5 X 20mm Glass T/R

125mA 250V AC DC Fuse Cartridge, Glass Holder 5mm x 20mm


得捷:
FUSE GLASS 125MA 250VAC 5X20MM


艾睿:
A great alternative to a circuit breaker, this a miniature 0218.125TXP fuse from Littelfuse will protect your electronics. This device has a current rating of 0.125. Its maximum power dissipation is 1.6 W. This device has a maximum power dissipation of 1.6 W. This fuse has a minimum operating temperature of -55 °C and a maximum of 125 °C. It has 2 terminals. The 0218.125TXP fuse has an axial termination style. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. Its fuse is made from glass. The maximum AC voltage rating is 250 VAC. This product is 20 mm long with a diameter of 4.7 mm.


0218.125TXP中文资料参数规格
技术参数

额定电压AC 250 V

额定电流 125 mA

工作温度Max 125 ℃

工作温度Min -55 ℃

耗散功率Max 1.6 W

额定电压 250 V

额定电压AC Max 250 V

物理参数

工作温度 -55℃ ~ 125℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买0218.125TXP
型号: 0218.125TXP
描述:Fuse Miniature Slow Blow Acting 0.125A 250V Holder Axial Melf 5 X 20mm Glass T/R
替代型号0218.125TXP
型号/品牌 代替类型 替代型号对比

0218.125TXP

Littelfuse 力特

当前型号

当前型号

0218.125MXP

力特

完全替代

0218.125TXP和0218.125MXP的区别

0218.125HXP

力特

功能相似

0218.125TXP和0218.125HXP的区别
