314 系列 快熔型 250 V 30 A 6.4 x 32 mm 陶瓷管 保险丝

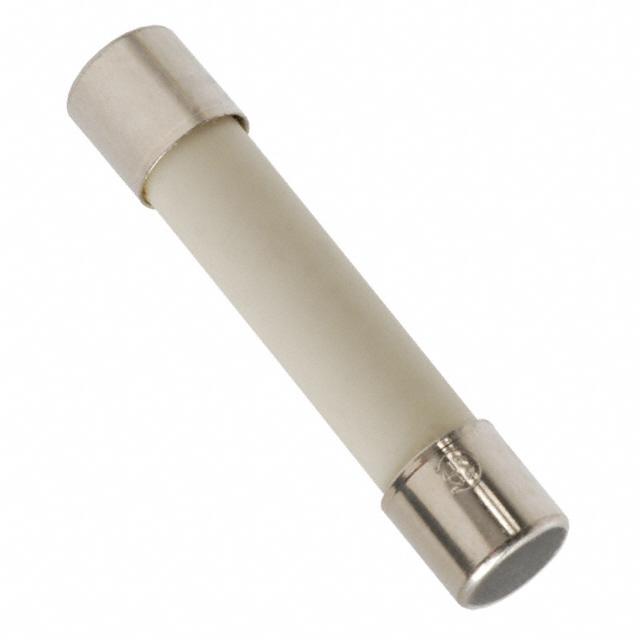

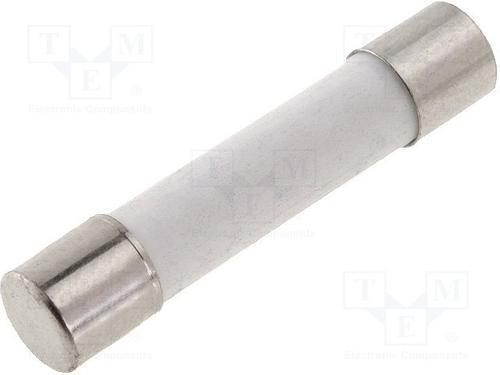

Be protected by adding a miniature fuse developed by . This device has a current rating of 30. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0314030.HXP fuse has a cartridge termination style. This product comes packaged in bulk, so the parts will be stored loosely. This product is 31.75 mm long with a diameter of 6.35 mm. The maximum AC voltage rating is 250 VAC. Its fuse is made from ceramic.
触点电镀 Nickel
额定电压DC 125 V
额定电压AC 250 V
额定电流 30 A
电阻 0.00182 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 250 V
额定电压AC Max 250 V
引脚数 2
封装 3AB, 3AG, 1/4" x 1-1/4"
长度 31.75 mm
直径 6.35 mm
封装 3AB, 3AG, 1/4" x 1-1/4"
触点材质 Brass
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0314030.HXP Littelfuse 力特 | 当前型号 | 当前型号 |
0314030.MXP 力特 | 完全替代 | 0314030.HXP和0314030.MXP的区别 |
0324030.HXP 力特 | 完全替代 | 0314030.HXP和0324030.HXP的区别 |
0324030.VXP 力特 | 完全替代 | 0314030.HXP和0324030.VXP的区别 |
