0039301062

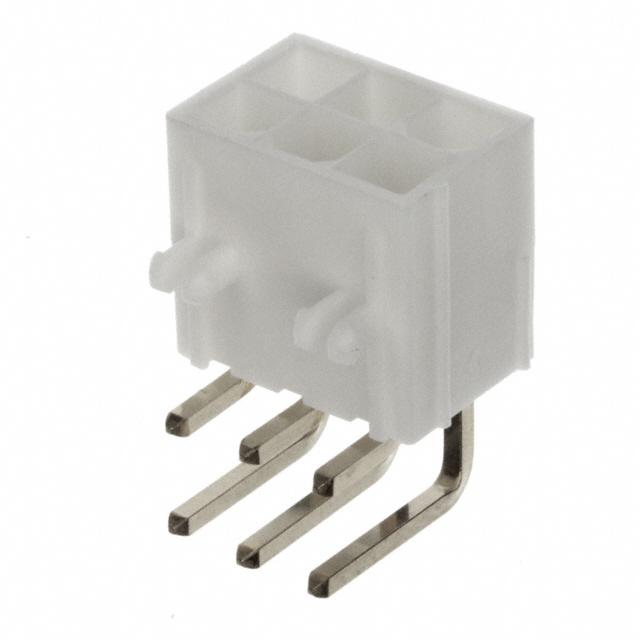

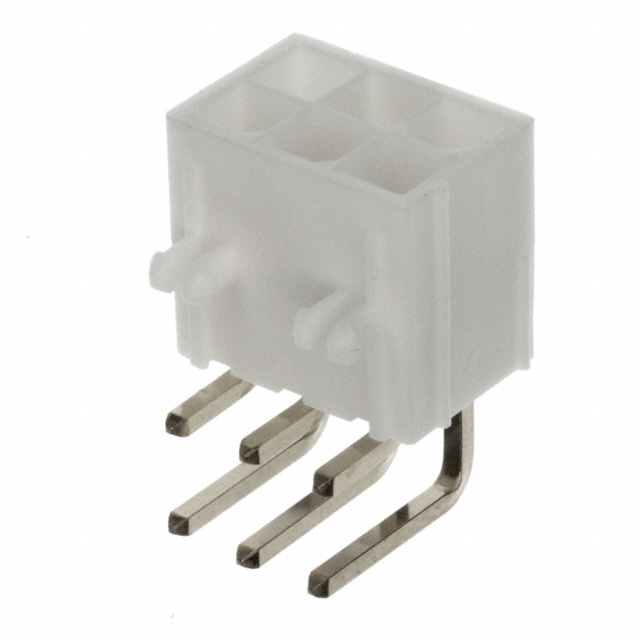

4.20毫米（ .165 “ ）间距迷你适合小头，双排，直角，以管理单元塑料钉板锁 4.20mm .165" Pitch Mini-Fit Jr. Header, Dual Row, Right Angle, with Snap-in Plastic Peg PCB Lock

4.20mm .165" Pitch Mini-Fit Jr.™ Header, Dual Row, Right Angle, with Snap-in Plastic

Peg PCB Lock, 6 Circuits, PA Polyamide Nylon 6/6 94V-0, 0.76µm 30µ" Gold Au

Plating

得捷:
CONN HEADER R/A 6POS 4.2MM

艾睿:
Connecting an electronic device to a power supply has never been easier with this 0039301062 power connector from Molex. This HDR connector&s;s 6 contacts that are made out of brass alloy and plated with gold over nickel. This connector has a single port. Its pitch is 4.2 mm. It has a header type gender. It has a right angle body orientation. It has a maximum voltage rating of 600 V. This device has a maximum current rating of 13 A/contact. 0039301062 is housed in polyamide 6/6. Its 6 terminals use the solder termination method. This product is 13.8 mm long, 11.4 mm tall and 19.4 mm deep. This power connector has a minimum operating temperature of -40 °C and a maximum of 105 °C.

Chip1Stop:
Conn Wire to Board HDR 6 POS 4.2mm Solder RA Thru-Hole Tray

Verical:
Conn Wire to Board HDR 6 POS 4.2mm Solder RA Side Entry Thru-Hole Mini-Fit Jr™ Bag
