0430451400

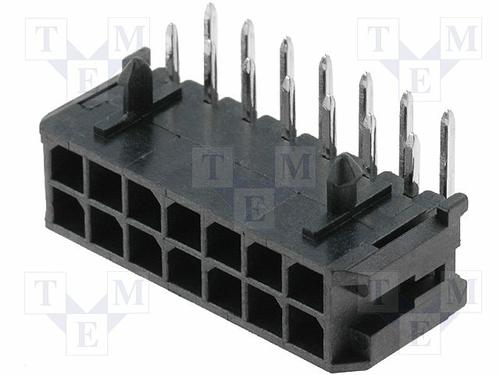

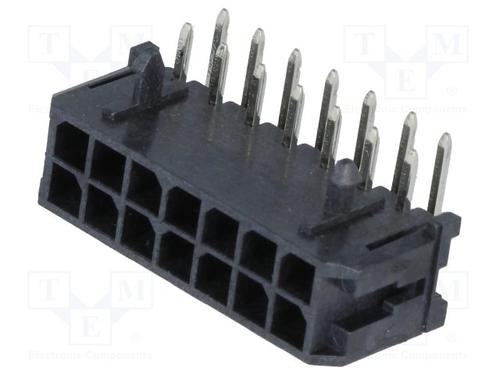

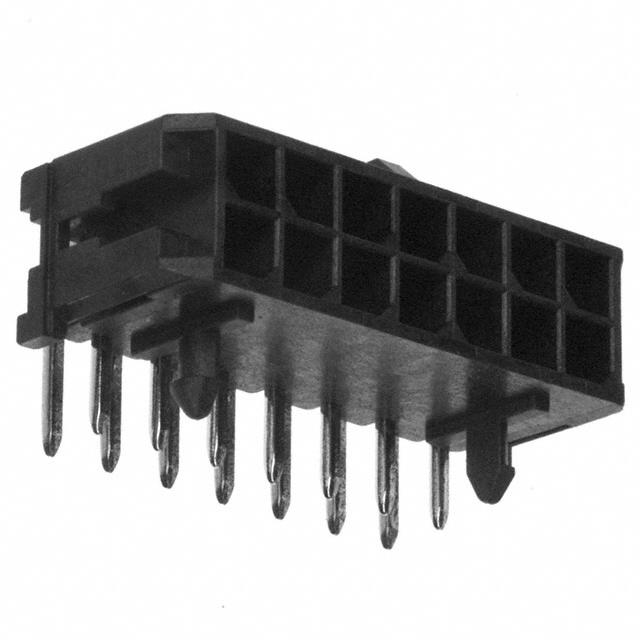

3.00毫米（ 0.118 “ ）间距微飞度3.0 ™接头，表面安装，双排，直角，以管理单元塑料栓锁电路板，电路14 3.00mm .118" Pitch Micro-Fit 3.0™ Header, Surface Mount Compatible, Dual Row, Right Angle, with Snap-in Plastic Peg PCB Lock, 14 Circuits

针座 通孔，直角 14 位置 0.118"（3.00mm）

得捷:
CONN HEADER R/A 14POS 3MM

艾睿:
Make strong and binding connections on your circuit boards by adopting this wire to board 0430451400 connector from Molex. This HDR connector&s;s 14 contacts that are made out of brass alloy and plated with tin over nickel. It has a maximum voltage rating of 600 V. Its pitch is 3 mm. It has a header type gender. It has a right angle body orientation. This is a 2-row connector. This device has a maximum current rating of 5 A/contact. The item will be shipped in tray orientation. This product is 25.15 mm long, 8.77 mm tall and 12.2 mm deep. It uses the solder termination method. This connector has an operating temperature of -40 to 105 °C. 0430451400 is housed in black liquid crystal polymer.

安富利:
Conn Wire to Board HDR 14 POS 3mm Solder RA Thru-Hole Tray

Chip1Stop:
Conn Wire to Board HDR 14 POS 3mm Solder RA Thru-Hole Tray

Verical:
PCB Connector HDR 14 POS 3mm Solder RA Thru-Hole 14 Terminal 1 Port
