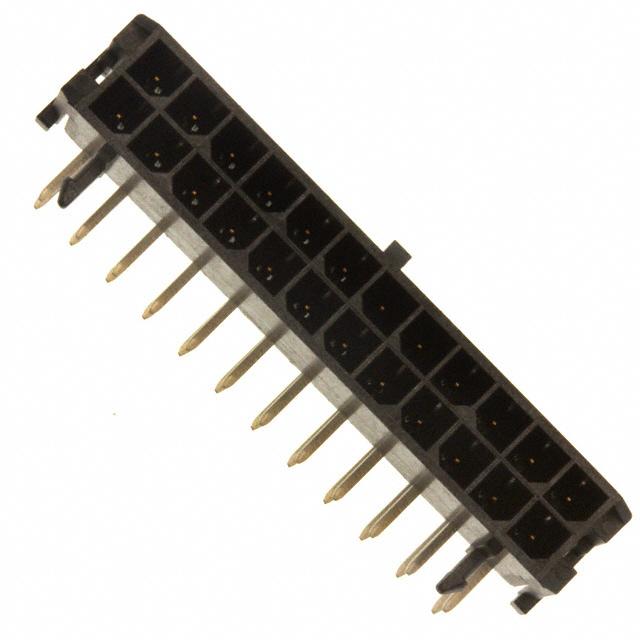

3.00毫米（ 0.118 “ ）间距微飞度3.0 ™接头，表面安装，双排，直角，以管理单元塑料栓锁电路板，电路24 3.00mm .118" Pitch Micro-Fit 3.0™ Header, Surface Mount Compatible, Dual Row, Right Angle, with Snap-in Plastic Peg PCB Lock, 24 Circuits
Mount this wire to board header connector from on a jumper post on your PCB to support physical configuration options. This HDR connector"s 24 contacts that are made out of brass alloy and plated with gold over nickel. This is a 2-row connector. It has a right angle body orientation. It has a maximum voltage rating of 600 V. Its pitch is 3 mm. It has a header type gender. This device has a maximum current rating of 5 A/contact. The component will be shipped in tray format. This connector has an operating temperature of -40 to 105 °C. It uses the solder termination method. 0430452402 is housed in black liquid crystal polymer. This product is 40.15 mm long, 8.77 mm tall and 12.2 mm deep.
