0015247140

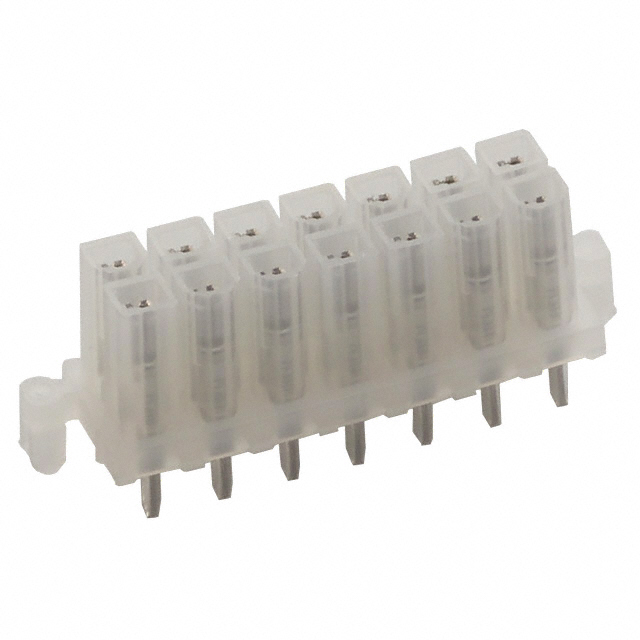

Conn Power RCP 14POS 4.2mm Solder ST Thru-Hole 14 Terminal 1Port Mini-Fit BMI Tray

14 Position Receptacle Connector Through Hole

得捷:
CONN RCPT 14POS 0.165 TIN PCB

艾睿:
Easily connect a power supply to a circuit with this 0015247140 power connector from Molex. This RCP connector&s;s 14 contacts that are made out of brass alloy and plated with tin over nickel. It has a straight body orientation. It has a receptacle type gender. Its pitch is 4.2 mm. It has a maximum voltage rating of 600 VDC|600VAC. This connector has a single port. 0015247140 is housed in nylon 6/6. This device has a maximum current rating of 9 A/contact. This component will be shipped in tray format. Its 14 terminals use the solder termination method. This power connector has an operating temperature range of -40 °C to 105 °C. This product is 9.6 mm deep.

安富利:
Conn Wire to Board RCP 14 POS 4.2mm Solder ST Thru-Hole Tray

Chip1Stop:
Conn Wire to Board RCP 14 POS 4.2mm Solder ST Thru-Hole Tray

Verical:
Conn Power RCP 14 POS 4.2mm Solder ST Thru-Hole 14 Terminal 1 Port Mini-Fit® BMI Tray
