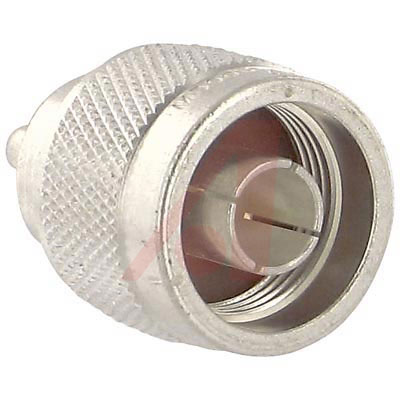

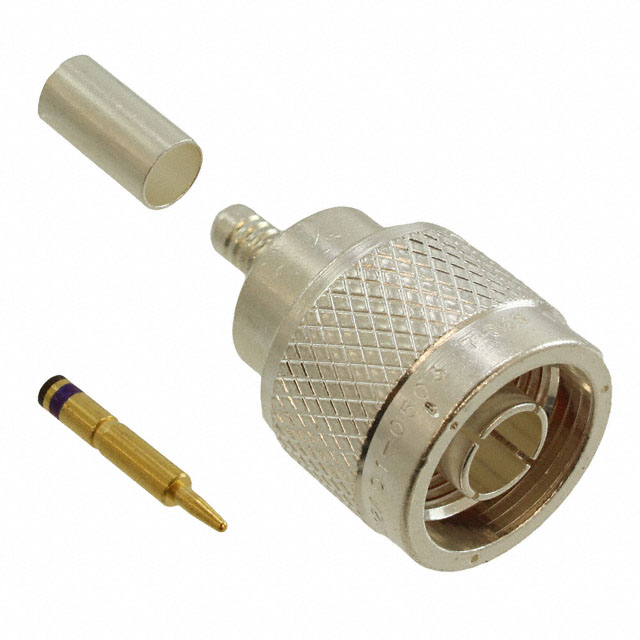

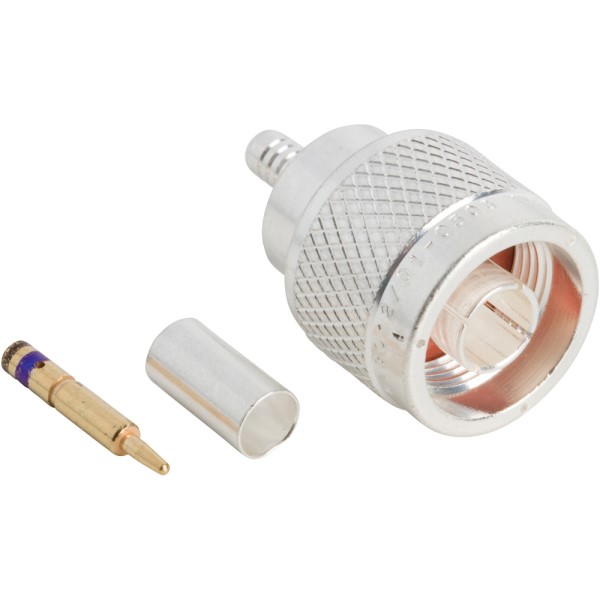

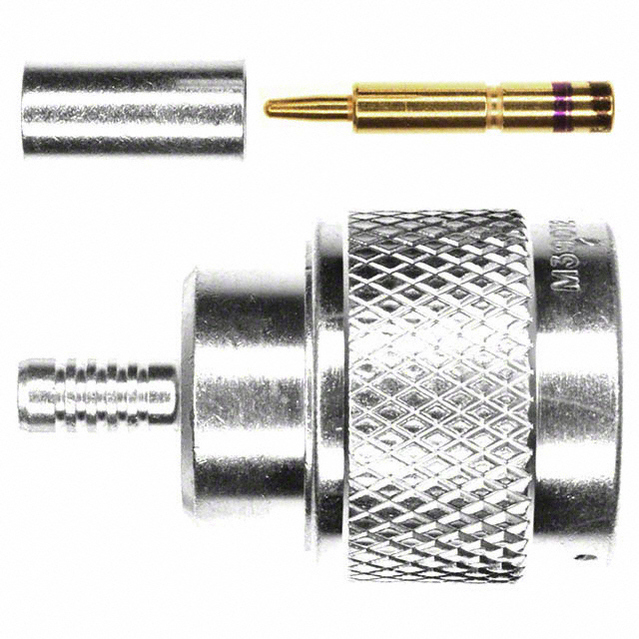

Conn Type N PL 0Hz to 11GHz 50Ω Crimp ST Cable Mount Gold
Medium size. Threaded coupling. Weatherproof. TFE insulation.- .
- *Impedance:** 50 Ω. **Frequency:** 0-11 GHz. **Voltage:** 1500 V peak. **Materials:** Body — brass with ASTROplate® finish or silver for M39012; Contacts — male: brass, female: phosphor bronze; silver or gold plated.
得捷:
CONN N PLUG STR 50 OHM CRIMP
艾睿:
The type n 082-4427 RF connector from Amphenol will make sure your RF components are shielded properly when connected. This connector&s;s body is plated in silver. It has a straight body orientation. It has a plug type gender. It has an operating frequency of 0 to 11G Hz. It uses the crimp termination method. This product is 36.9 mm long with a diameter of 21 mm. This rf connector has an operating temperature of -65 to 165 °C.
Allied Electronics:
connector, rf coaxial, n straight plug, crimp-crimp, for rg/u 142, 400 cable, 50 ohm
Verical:
Conn Type N 0Hz to 11GHz 50Ohm Crimp ST Cable Mount PL Gold
Newark:
# AMPHENOL RF 082-4427 Type N CR PLG RG400M39012
MASTER:
RF Connector M39012/01-0503 N-Type Straight Crimp Plug for RG-400 RG-142B 50 Ohm
Online Components:
RF Connector M39012/01-0503 N-Type Straight Crimp Plug for RG-400 RG-142B 50 Ohm
Electro Sonic:
RF Connector M39012/01-0503 N-Type Straight Crimp Plug for RG-400 RG-142B 50 Ohm
