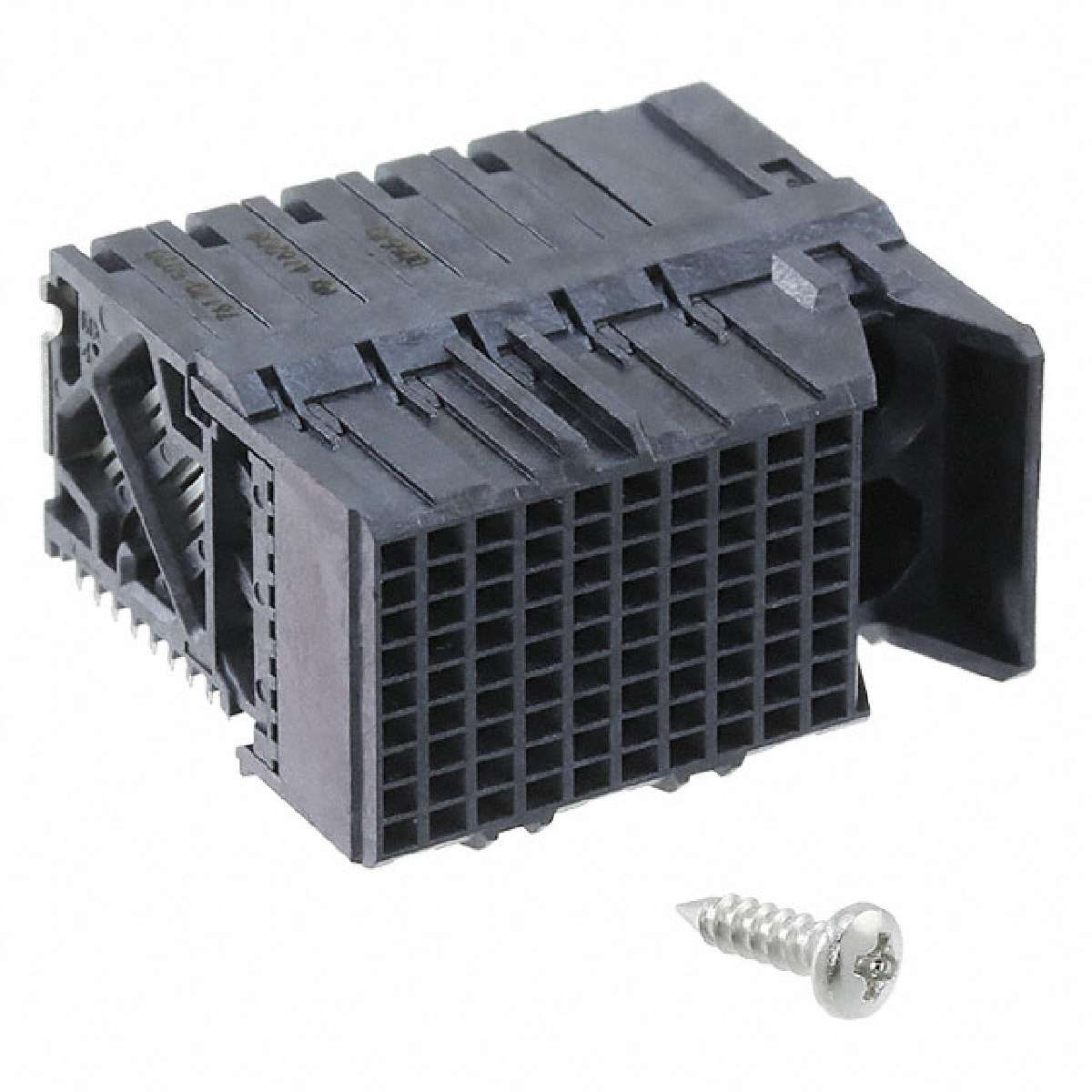

Conn Daughter Card RCP 90POS 1.9mm Press Fit RA Thru-Hole Tray
Connector Receptacle, Female Sockets Board Edge, Through Hole, Right Angle Black Impact, Guide Right
得捷:
CONN RCPT IMPACT 90POS EDGE MNT
艾睿:
Solder Molex&s;s daughter card 0761705020 backplane connector to your printed circuit board to allow for fast serial bus communication between multiple boards. This RCP connector&s;s 90 contacts that are made out of copper alloy and plated with gold over nickel. Its pitch is 1.9 mm. This is a 9-row connector. It has a right angle body orientation. It has a maximum voltage rating of 30 VDC|30VAC. It has a receptacle type gender. This device has a maximum current rating of 0.75 A/contact. This component will be shipped in tray format. This product is 26.6 mm long, 15.4 mm tall and 24.1 mm deep. 0761705020 is housed in black liquid crystal polymer. This backplane connector has an operating temperature of -55 to 85 °C. It uses the press fit termination method.
安富利:
Conn Daughter Card RCP 90 POS 1.9mm Press Fit RA Thru-Hole Tray
