0520452845

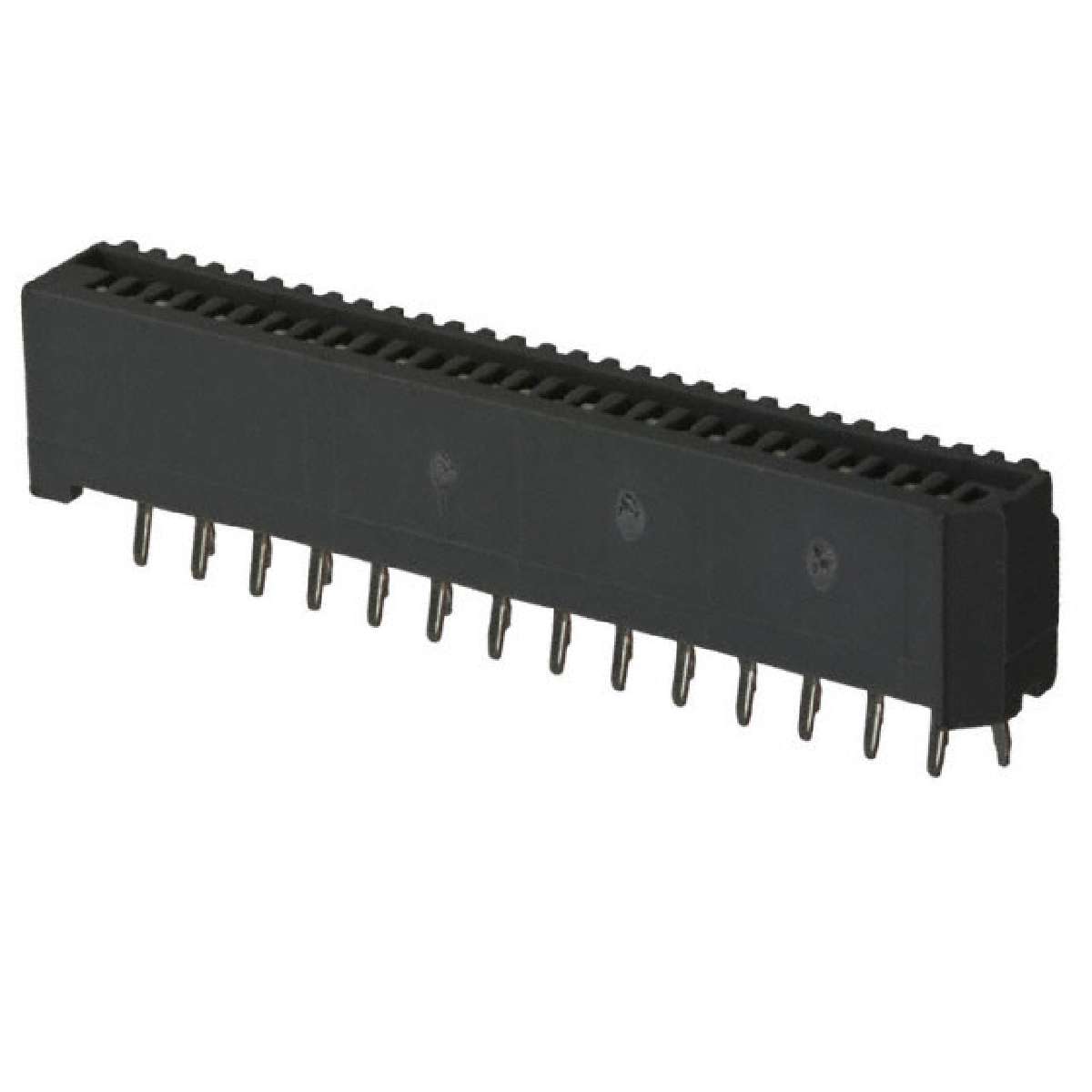

1.25毫米（ .049 “ ）垂直，非ZIF插座， 28电路 1.25mm .049" Vertical, Non-ZIF Receptacle, 28 Circuits

28 位置 FFC，FPC 触头，垂直 - 单侧 0.049"（1.25mm） 通孔

得捷:
CONN FFC VERT 28POS 1.25MM PCB

艾睿:
Think of Molex&s;s ffc/fpc connector 0520452845 flexible flat cable the next time you&s;re in a tight situation between components or printed circuit boards. Its pitch is 1.25 mm. This socket type connector&s;s 28 contacts that are made out of phosphor bronze and plated with tin. It has a straight body orientation. It has a maximum voltage rating of 200 V. This is a 1-row connector. This device has a maximum current rating of 1 A/contact. The item will be shipped in tray orientation. This flexible flat cable has an operating temperature of -40 to 85 °C. 0520452845 is housed in gray polyester. This product is 38.4 mm long, 8 mm tall and 5.6 mm deep. It uses the solder termination method.

安富利:
Conn FFC/FPC Connector SKT 28 POS 2.5mm Solder ST Thru-Hole Tray

Verical:
Conn FFC/FPC Connector SKT 28 POS 1.25mm Solder ST Thru-Hole Tray
