射频/同轴连接器, BNC, 直型转接头, 公-公

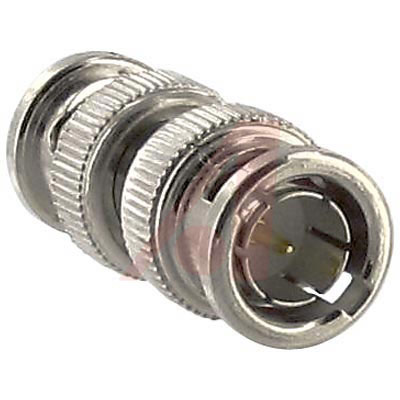

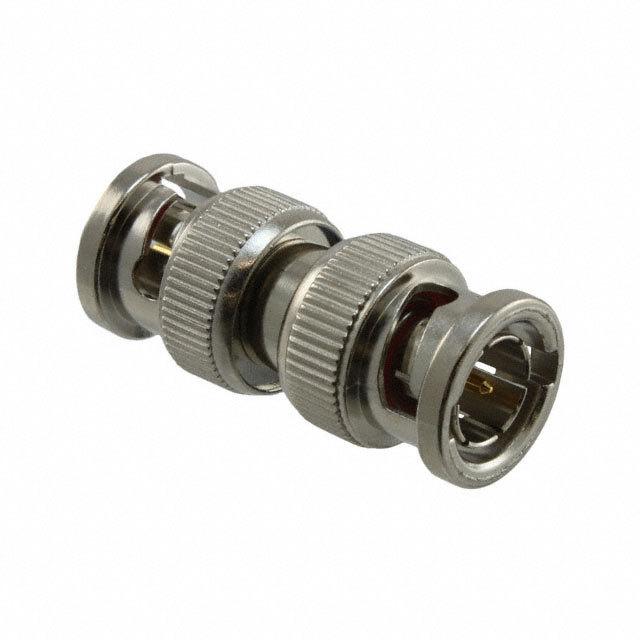

BNC Male-to-Male Adapter, Brass Body Material, 1.327 in. Length
** Note:** These connectors meet or exceed military specification, but aren"t on the QPL and are intended for commercial use only. Military specification numbers, where shown, are for reference only. Two distinct types of 75 Ohm BNC are available, both mate with each other and with 50 Ohm BNCs. Type 1 is designated 75-T1 and provides constant 75 Ohm performance with low VSWR DC to 4 GHz. Type 2 is designated 75-T2 and is usable with low reflection DC to 1 GHz. For applications above 1 GHz, Type 1 is recommended.
Contact material is brass with gold plating.
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
031-218-75RFX Amphenol 安费诺 | 当前型号 | 当前型号 |
6740 Pomona Electronics | 功能相似 | 031-218-75RFX和6740的区别 |
71S121-S20S3 罗森伯格 | 功能相似 | 031-218-75RFX和71S121-S20S3的区别 |
