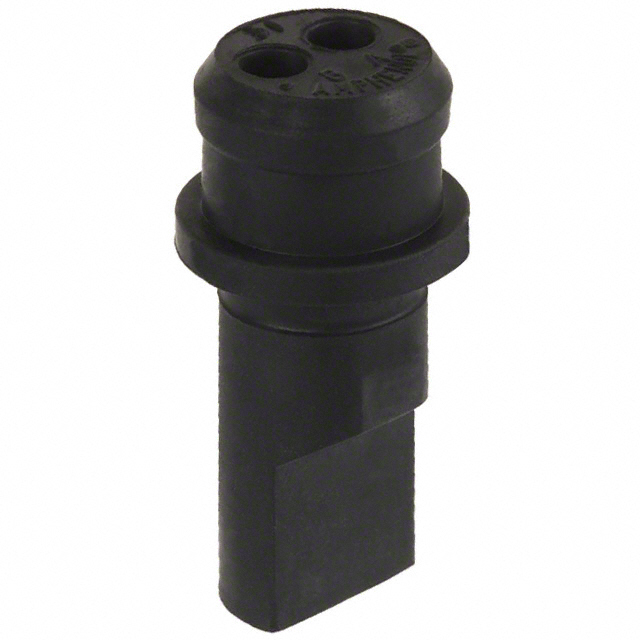

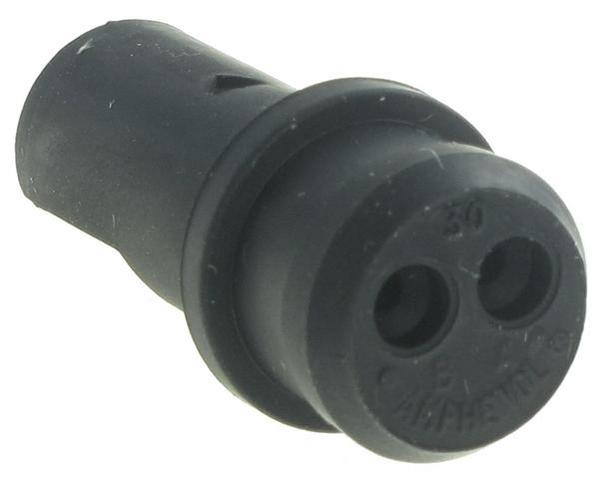

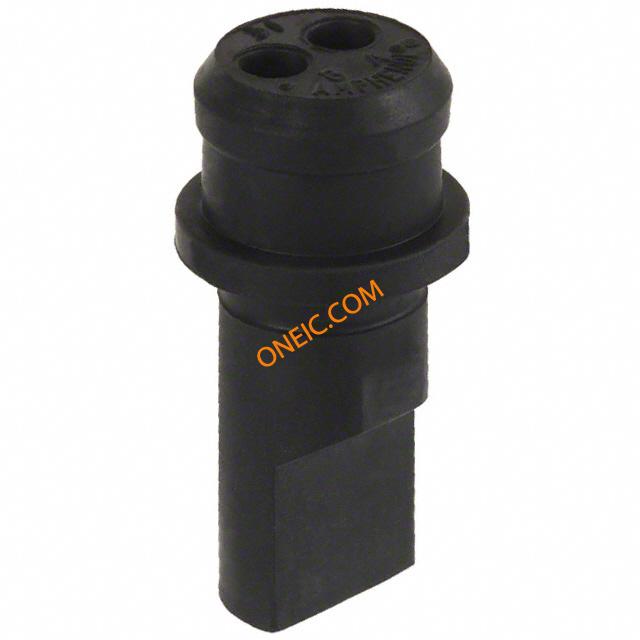

044 103 10002

CONN PLUG HSG FMALE 2POS INLINE

Environmental Plug, 250 VAC RMS Voltage Rating, 8 A Current Rating

044 Series high-performance environmentally sealed connectors feature a resilient, one-piece design incorporating crimp contacts, in six insert configurations. The contacts fit 14, 16 and 18 AWG wire with the Outside Diameter 0.080" to 0.130" 2.03 to 3.30 mm. Primary and secondary mating seals and discrete wire seals resist liquids. Ideal for auto/truck, marine, industrial, traffic control, security and mining ventilation systems. 250 VAC RMS at 8 A continuous.

.

* Temperature Range:** -40° to +125°C. Order contacts and tooling separately. Mustuse insertion tool for contacts.

The mating seals primary and secondary as well as the discrete wire seals, resist entry of liquid into the connector, causing electric or electronic circuit failures not intended for submersible applications.
