0473340001

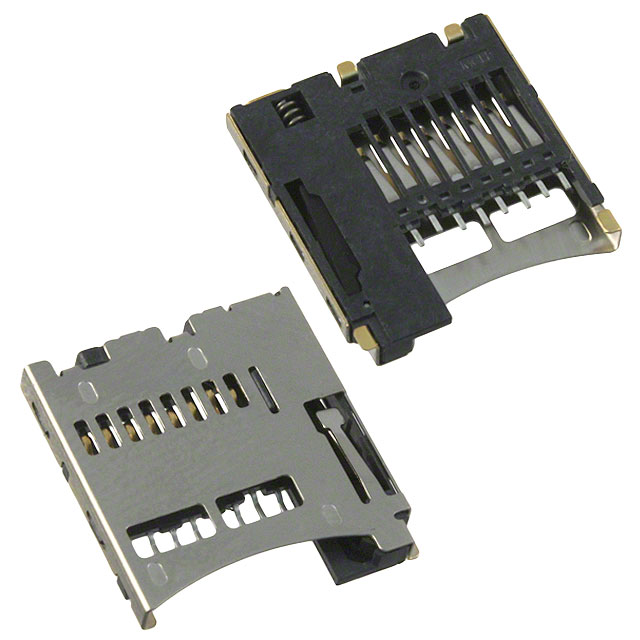

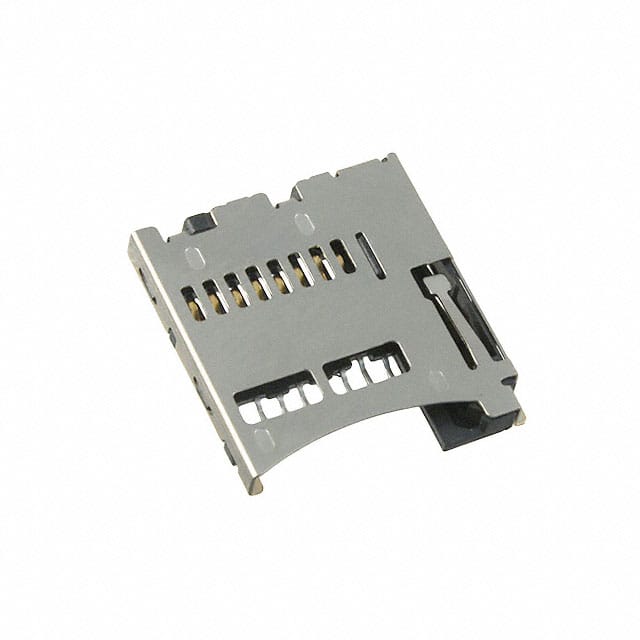

1.10毫米（ .043 “ ）间距的microSD卡连接器，双推式，无检测开关，无铅 1.10mm .043" Pitch microSD Card Connector, Push-Push Type, without Detect Switch, Lead Free

Use this micro sd card micro SD connector from to attach various cards to devices for usage. This HDR connector"s 8 contacts that are made out of copper alloy and plated with gold over nickel. It has a header type gender. This is a 1-row connector. It has a maximum voltage rating of 100 VDC. Its pitch is 1.1 mm. It has a right angle body orientation. This device has a maximum current rating of 0.5 A/contact. 0473340001 is housed in liquid crystal polymer. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It uses the solder termination method. This product is 14 mm long, 1.88 mm tall and 15.2 mm deep. This power entry module has an operating temperature of -20 to 85 °C.
