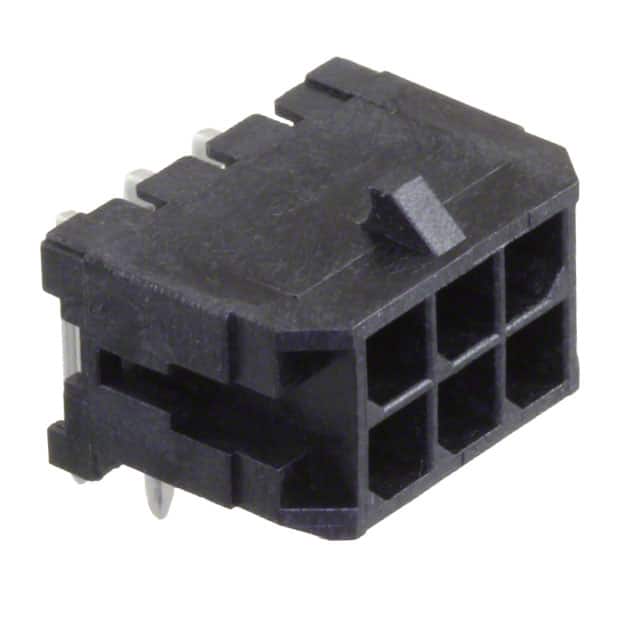

0430450602

MOLEX  0430450602  连接器, 针座, 6路, 2排, 3MM

针座 通孔，直角 6 位置 0.118"（3.00mm）

得捷:
CONN HEADER R/A 6POS 3MM

艾睿:
Use this wire to board 0430450602 header connector from Molex where IDC ribbon cables are used. This HDR connector&s;s 6 contacts that are made out of brass alloy and plated with gold over nickel. It has a header type gender. This is a 2-row connector. It has a maximum voltage rating of 600 V. It has a right angle body orientation. Its pitch is 3 mm. This device has a maximum current rating of 5 A/contact. This component comes in tray packaging, useful for fast picking and placing of your parts. This connector has an operating temperature of -40 to 105 °C. It uses the solder termination method. 0430450602 is housed in black liquid crystal polymer. This product is 13.15 mm long, 8.77 mm tall and 12.2 mm deep.

安富利:
Conn Wire to Board HDR 6 POS 3mm Solder RA Thru-Hole Tray

Chip1Stop:
Conn Power HDR 6 POS 3mm Solder RA Thru-Hole 6 Terminal 1 Port Micro-Fit 3.0邃｢ Tray

Verical:
Conn Wire to Board HDR 6Power POS 3mm Solder RA Side Entry Thru-Hole Micro-Fit 3.0 Tray
