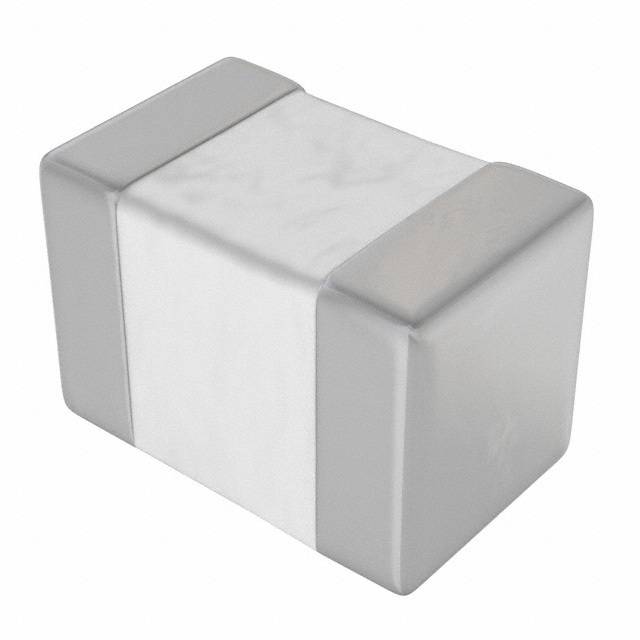

0805 1.5uF ±10% 10V X5R
1.5µF ±10% 10V Ceramic Capacitor X5R 0805 2012 Metric
得捷:
CAP CER 1.5UF 10V X5R 0805
艾睿:
Use its standard classification system to find out what this 0805ZD155KAT2A multilayer ceramic capacitor from AVX can do for you! It can withstand a voltage of 10 VDC. This MLCC capacitor has a maximum operating temperature of 85 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. This product is 2.01 mm long, 1.4Max mm tall and 1.25 mm deep. Its capacitance value is 1.5uF. It has a tolerance of 10%.
Newark:
# AVX 0805ZD155KAT2A SMD Multilayer Ceramic Capacitor, 0805 [2012 Metric], 1.5 µF, 10 V, ± 10%, X5R
额定电压DC 10.0 V
电容 1.5 µF
容差 ±10 %
电介质特性 X5R
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压 10 V
安装方式 Surface Mount
引脚数 2
封装公制 2012
封装 0805
长度 2 mm
宽度 1.25 mm
高度 1.4 mm
封装公制 2012
封装 0805
材质 X5R/-55℃~+85℃
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 3000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
0805ZD155KAT2A AVX 艾维克斯 | 当前型号 | 当前型号 |
ECJ-2YB0J155K 松下 | 功能相似 | 0805ZD155KAT2A和ECJ-2YB0J155K的区别 |
