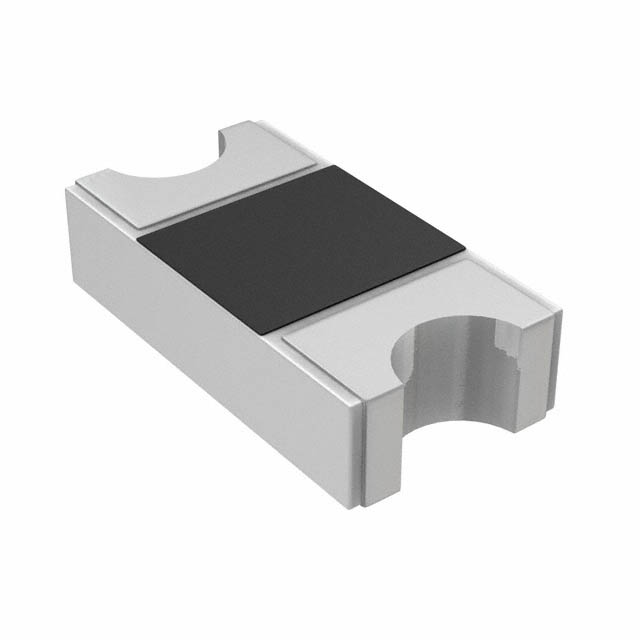

自恢复保险丝—PPTC 6V POLYFUSE 0603 LoRho SL 0.50A
This PTC resettable fuse from is an alternative to replacing burned out fuses. This device has a maximum current rating of 50. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 1.8Max mm long, 0.75Max mm tall and 1Max mm deep.
额定电压DC 6.00 V
工作电压 6.00 V
跳闸时间 100 ms
耗散功率 0.6 W
电阻 0.35 Ω
保持电流 500 mA
跳闸电流 1 A
额定电流Max 50 A
保持电流Max 500 mA
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压Max 6 VDC
额定电压 6 VDC
工作电压Max 6 V
安装方式 Surface Mount
封装公制 1608
封装 0603
长度 1.8 mm
宽度 1 mm
高度 0.75 mm
封装公制 1608
封装 0603
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
