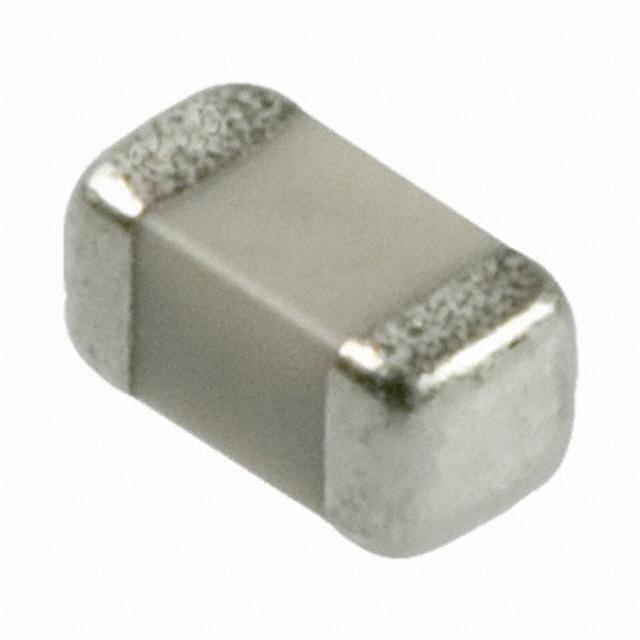

0603 39 pF 25 V ±5 % 容差 C0G/NP0 表面贴装 多层陶瓷电容
39pF ±5% 25V Ceramic Capacitor C0G, NP0 0603 1608 Metric
得捷:
CAP CER 39PF 25V NP0 0603
艾睿:
This 06033A390JAT2A multilayer ceramic capacitor from AVX can be used in multiple applications and for various purposes. It can withstand a voltage of 25 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. It has a tolerance of 5%. This product is 1.6 mm long, 0.9Max mm tall and 0.81 mm deep. Its capacitance value is 39pF.
安富利:
Cap Ceramic 39pF 25V C0G 5% SMD 0603 125°C Paper T/R
额定电压DC 25.0 V
绝缘电阻 100 GΩ
电容 39 pF
容差 ±5 %
电介质特性 C0G/NP0
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 25 V
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.9 mm
封装公制 1608
封装 0603
材质 C0G/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 4000
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
06033A390JAT2A AVX 艾维克斯 | 当前型号 | 当前型号 |
06033A390J4T2A 艾维克斯 | 功能相似 | 06033A390JAT2A和06033A390J4T2A的区别 |
06033A390JA77A 艾维克斯 | 功能相似 | 06033A390JAT2A和06033A390JA77A的区别 |
06033A390JA79A 艾维克斯 | 功能相似 | 06033A390JAT2A和06033A390JA79A的区别 |
