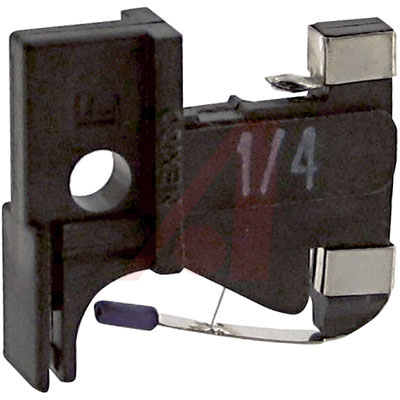

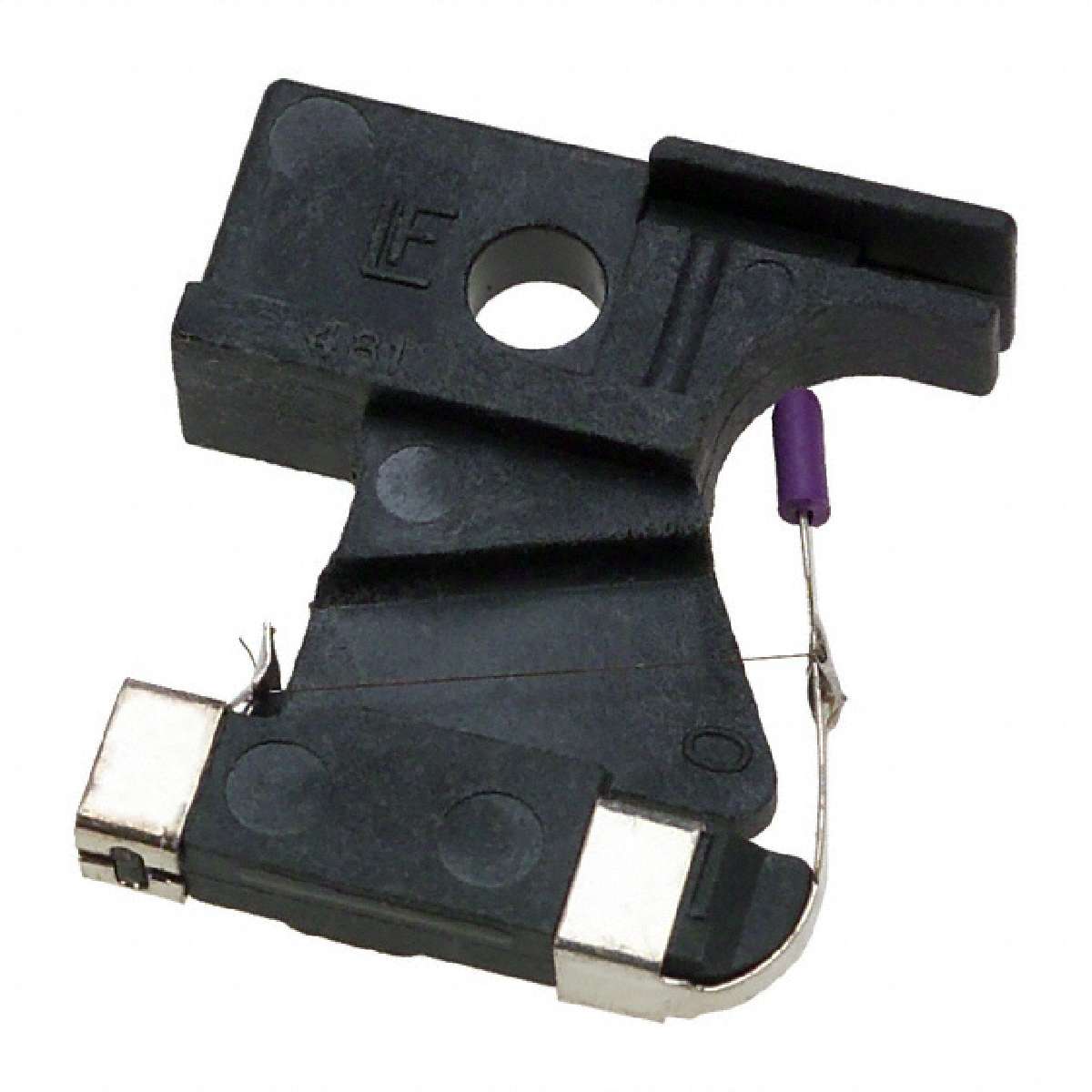

特殊用途保险丝481系列报警指示保险丝 Special Application Fuses 481 Series Alarm Indicating Fuse
Color coded by amperage. Blown fuse indicating flag can activate alarm circuit. Multiple panel mounting in limited space. 0.585" × 0.775" UL recognized at 60 VDC.
* For Telecommunications Equipment and Similar Applications
* Available from 0.18 through 20 Amp
立创商城:
0481.250H
贸泽:
Specialty Fuses 125V .25A
艾睿:
Fuse Alarm Indicating 0.25A 125V Holder 17.8 X 8 X 19.6mm Polyphenylene Sulfide Bulk CSA
Allied Electronics:
Fuse; Indicating/Telecom; 0.25A; Supplemental; Dims 0.9x0.23x0.77"; Plastic-Black
Newark:
# LITTELFUSE 0481.250H Fuse, Alarm / Indicating, 481 Series, 250 mA, 125 VAC, 125 VDC, Fast Acting, LED / Audio
额定电压DC 125 V
额定电压AC 125 V
额定电流 250 mA
易燃性等级 UL 94 V-0
电阻 4.2 Ω
电阻DC） 4.2 Ω
工作温度Max 90 ℃
工作温度Min -55 ℃
额定电压 125 V
额定电压DC Max 125 V
额定电压AC Max 125 V
封装 Alarm Indicator
长度 22.9 mm
宽度 19.6 mm
高度 8 mm
封装 Alarm Indicator
颜色 Violet
工作温度 -55℃ ~ 90℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 Non-Compliant
含铅标准 Contains Lead
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0481.250H Littelfuse 力特 | 当前型号 | 当前型号 |
0481.250V 力特 | 类似代替 | 0481.250H和0481.250V的区别 |
