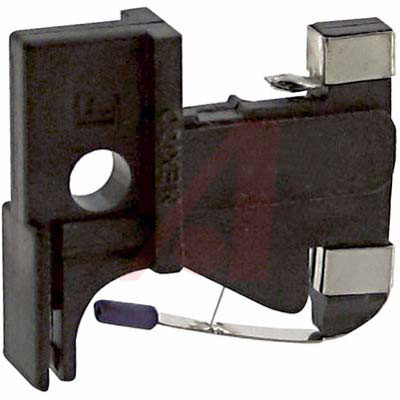

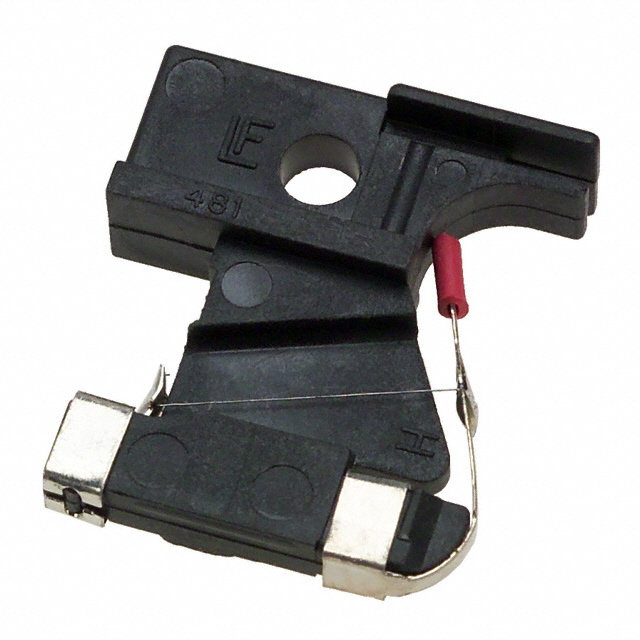

0481.500H

特殊用途保险丝481系列报警指示保险丝 Special Application Fuses 481 Series Alarm Indicating Fuse

Color coded by amperage. Blown fuse indicating flag can activate alarm circuit. Multiple panel mounting in limited space. 0.585" × 0.775" UL recognized at 60 VDC.

* For Telecommunications Equipment and Similar Applications

* Available from 0.18 through 20 Amp

立创商城:
0481.500H

贸泽:
Specialty Fuses 125V .5A

艾睿:
Be protected by adding an alarm indicating 0481.500H fuse developed by Littelfuse. This device has a current rating of 0.5. This fuse has an operating temperature range of -55 °C to 90 °C. It has 2 terminals. This product comes packaged in bulk, so the parts will be stored loosely. This product is 17.8 mm long, 19.6 mm tall and 8 mm deep. Its fuse is made from polyphenylene sulfide. The maximum AC voltage rating is 125 VAC and the maximum DC voltage rating is 125 VDC.

Allied Electronics:
Fuse; Indicating/Telecom; 0.5A; Supplemental; Dims 0.9x0.23x0.77"; Plastic-Black

富昌:
481 系列 快熔型 125 V 500 mA 16.9 x 19.6 mm 报警指示 保险丝

Chip1Stop:
Fuse Alarm Indicating 0.5A 125V Holder 17.8 X 8 X 19.6mm Polyphenylene Sulfide Bulk

Verical:
Fuse Alarm Indicating 0.5A 125V Holder 17.8 X 8 X 19.6mm Polyphenylene Sulfide Bulk CSA

Newark:
# LITTELFUSE  0481.500H  Fuse, Alarm / Indicating, 481 Series, 500 mA, 125 VAC, 125 VDC, Fast Acting, LED / Audio
