X7R电介质 X7R Dielectric
±20% 50V 陶瓷器 X7R 0402(1005 公制)
得捷:
CAP CER 2200PF 50V X7R 0402
艾睿:
This 04025C222MAT2A multilayer ceramic capacitor from AVX offers high stability and low losses for resonant circuit applications. It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 125 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has a tolerance of 20%. Its capacitance value is 0.0022uF. This product is 1 mm long, 0.56Max mm tall and 0.5 mm deep.
安富利:
Cap Ceramic 0.0022uF 50V X7R 20% SMD 0402 125°C Paper T/R
Newark:

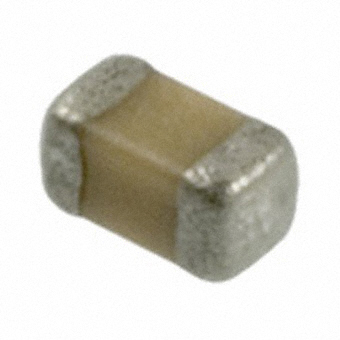

# AVX 04025C222MAT2A SMD Multilayer Ceramic Capacitor, 0402 [1005 Metric], 2200 pF, 50 V, ± 20%, X7R
额定电压DC 50.0 V
电容 2200 pF
容差 ±20 %
电介质特性 X7R
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 50 V
安装方式 Surface Mount
引脚数 2
封装公制 1005
封装 0402
长度 1 mm
宽度 0.5 mm
高度 0.56 mm
封装公制 1005
封装 0402
材质 X7R/-55℃~+125℃
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
最小包装 10000
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
