0034.7121

0034.7121图片1
0034.7121图片2
0034.7121图片3
0034.7121图片4
0034.7121图片5
0034.7121概述

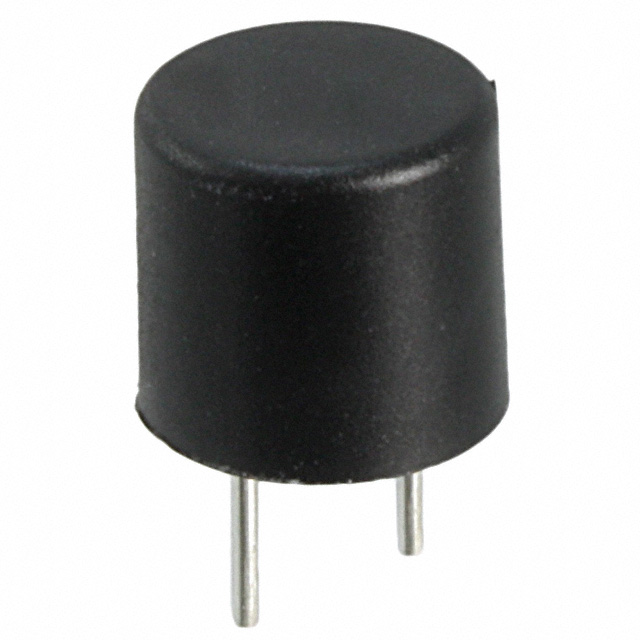

带引线的保险丝(通孔型) MSTU 250 FUSE 4A T

** MSTU Series**

Schurter MSTU series sub miniature fuses are directly solder able on printed circuit boards. The MSTU series has a thermoplastic body and tin-plated copper terminals. The MSTU series has a compact size making them ideal for primary protection on PCB’s as well as power supply adapters and SMPS.


贸泽:
带引线的保险丝(通孔型) MSTU 250 FUSE 4A T


艾睿:
Fuse Subminiature Slow Blow Acting 4A 250V Radial 8.5 X 8.5mm Thermoplastic Bag cULus


Allied Electronics:
Fuse; Subminiature; Time-Lag; 4 A; 250 VAC; 8.5x8.5mm; 2-Pin, Short; PCB Mnt


安富利:
MSTU 250 FUSE 4A T


Chip1Stop:
Fuse Subminiature Slow Blow Acting 4A 250V Radial 8.5 X 8.5mm Thermoplastic Bag


Newark:
MSTU 250, 4 A, 250 VAC, Time-Lag T, Non-Resettable Fuse, Subminiature Fuse


Electro Sonic:
MSTU 250 FUSE 4A T


0034.7121中文资料参数规格
技术参数

额定电流 4 A

工作温度Max 125 ℃

工作温度Min -55 ℃

耗散功率Max 0.303 W

额定电压 250 V

额定电压AC Max 250 V

外形尺寸

高度 8.5 mm

物理参数

工作温度 -55℃ ~ 125℃

其他

包装方式 Bag

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买0034.7121
型号: 0034.7121
制造商: Schurter
描述:带引线的保险丝(通孔型) MSTU 250 FUSE 4A T
