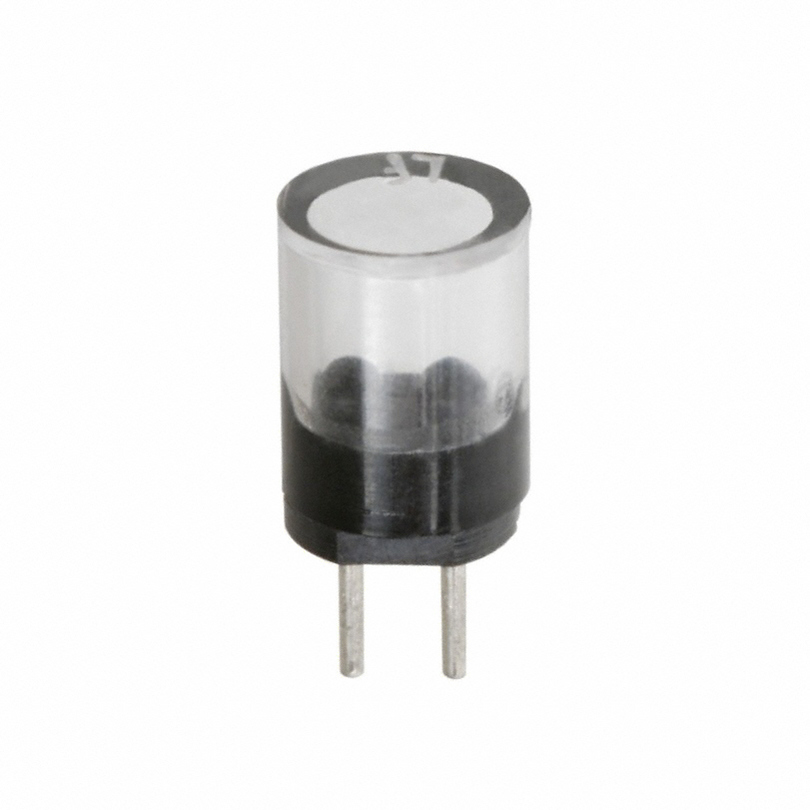

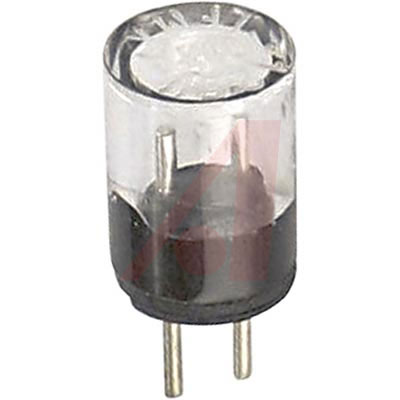

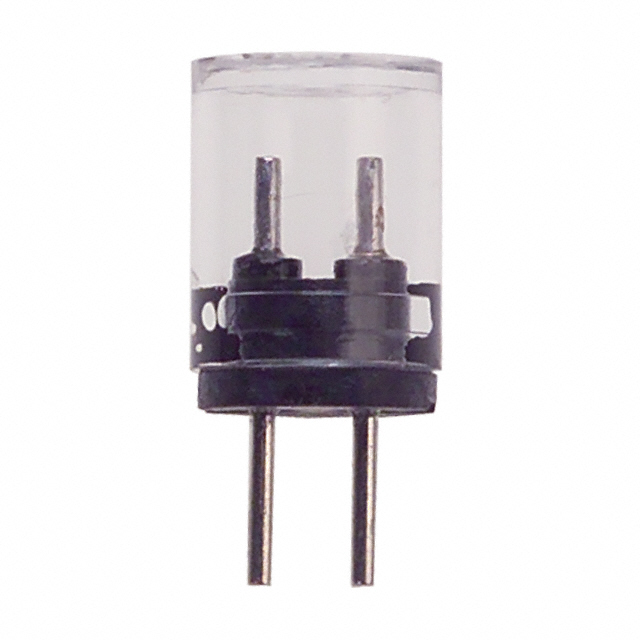

272/273/274/278/279系列，微安?? ¢非常快熔保险丝 272/273/274/278/279 Series, MICRO⢠Very Fast-Acting Fuse
Very fast-acting. Ideal for printed circuits. Features low resistance and high reliability in ultrafast blowing characteristics. Series 279000 has 1" leads for wiring into circuit. Short circuit interrupting capacity 125 volts, 10,000 amps AC. Series 273000 has 0.170 leads for plugging into subminiature fuse holder.- .
- *Blowing Specifications:** 100% — 4 hours minimum; 200% — 5 second maximum; transparent plastic cap. 125 V rating. UL Recognized. CSA Certified.
艾睿:
Fuse Subminiature Very Fast Acting 0.01A 125V Radial 6.35 X 8.89mm Bulk CSA
Allied Electronics:
Fuse; Subminiature; Very Fast-Acting; 1⁄ 100 A; 125 V; 80 Ohms; Plug-In
Chip1Stop:
Fuse Subminiature Very Fast Acting 0.01A 125V Radial 6 X 8mm Bulk CSA
Verical:
Fuse Subminiature Very Fast Acting 0.01A 125V Radial 6.35 X 8.89mm Bulk CSA
Newark:
# LITTELFUSE 0273.010V Fuse, PCB Leaded, 10 mA, 125 VAC, MICRO Series, 125 VDC, Very Fast Acting, Radial Leaded
额定电压DC 125 V
额定电压AC 125 V
额定电流 0.01 A
电阻 80 Ω
电阻DC） 80 Ω
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压 125 V
额定电压DC Max 125 V
额定电压AC Max 125 V
安装方式 Through Hole
引脚数 2

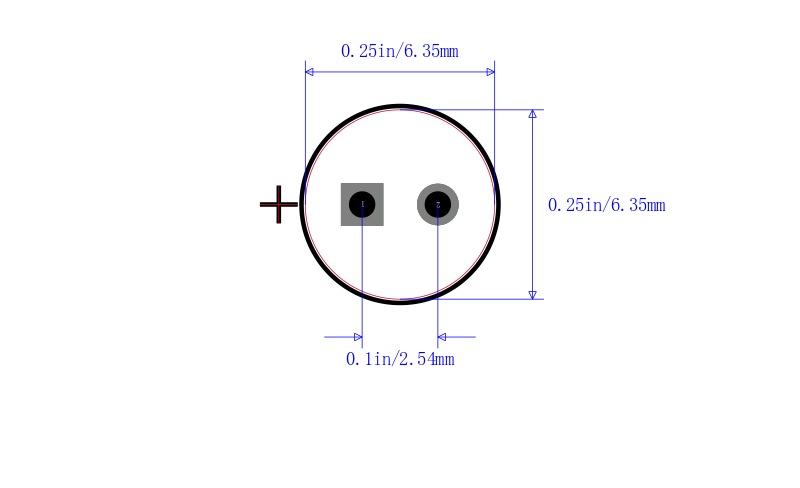

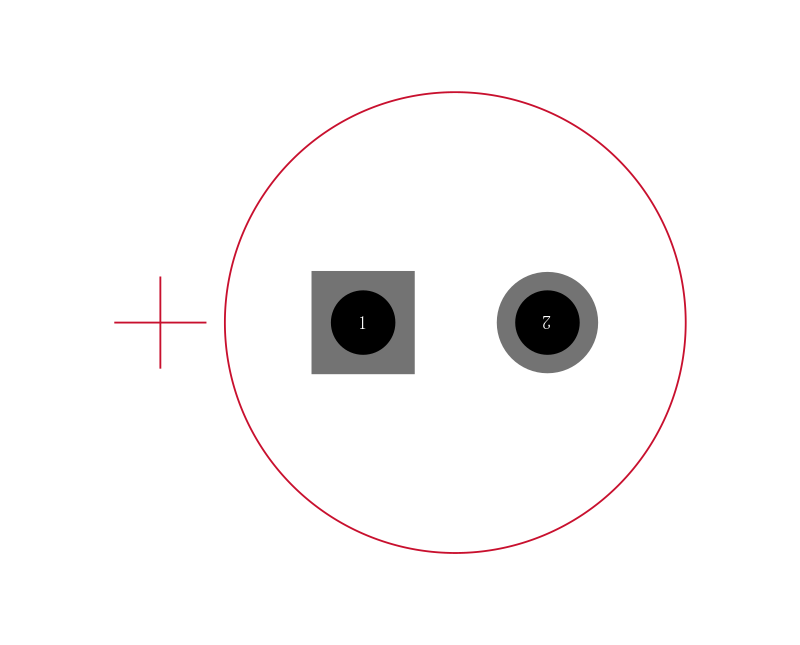

封装 Radial, CAN
长度 8.89 mm
高度 8.89 mm
直径 6.35 mm
脚长度 0.17 in
封装 Radial, CAN
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Contains Lead
