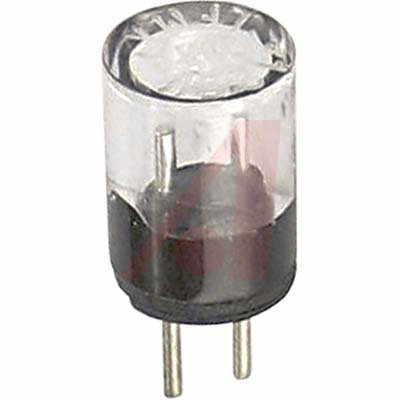

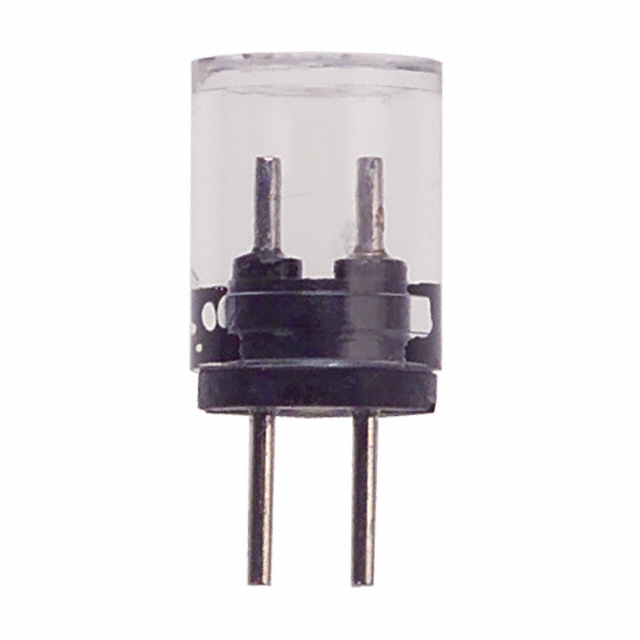

272/273/274/278/279系列,微安?? ¢非常快熔保险丝 272/273/274/278/279 Series, MICRO⢠Very Fast-Acting Fuse
Very fast-acting. Ideal for printed circuits. Features low resistance and high reliability in ultrafast blowing characteristics. Series 279000 has 1" leads for wiring into circuit. Short circuit interrupting capacity 125 volts, 10,000 amps AC. Series 273000 has 0.170 leads for plugging into subminiature fuse holder. 立创商城:
600mA 125V
艾睿:
A great alternative to a circuit breaker, this a subminiature 0273.600V fuse from Littelfuse will protect your electronics. This device has a current rating of 0.6. This fuse has a minimum operating temperature of -55 °C and a maximum of 85 °C. It has 2 terminals. The 0273.600V fuse has a radial termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 125 VAC and the maximum DC voltage rating is 125 VDC. This product is 8.89 mm tall with a diameter of 6.35 mm.
Allied Electronics:
Fuse; Subminiature; Very Fast-Acting; 6⁄ 10 A; 125 V; 0.43 Ohms; Plug-In
Chip1Stop:
Fuse Subminiature Very Fast Acting 0.6A 125V Radial 6 X 8mm Bulk
Verical:
Fuse Subminiature Very Fast Acting 0.6A 125V Radial 6.35 X 8.89mm Bulk CSA
Newark:
# LITTELFUSE 0273.600V Fuse, PCB Leaded, 600 mA, 125 VAC, MICRO Series, 125 VDC, Very Fast Acting, Radial Leaded
额定电压DC 125 V
额定电压AC 125 V
额定电流 0.6 A
电阻 0.43 Ω
电阻DC) 0.43 Ω
工作温度Max 85 ℃
工作温度Min -55 ℃
额定电压 125 V
额定电压DC Max 125 V
额定电压AC Max 125 V
安装方式 Through Hole
引脚数 2

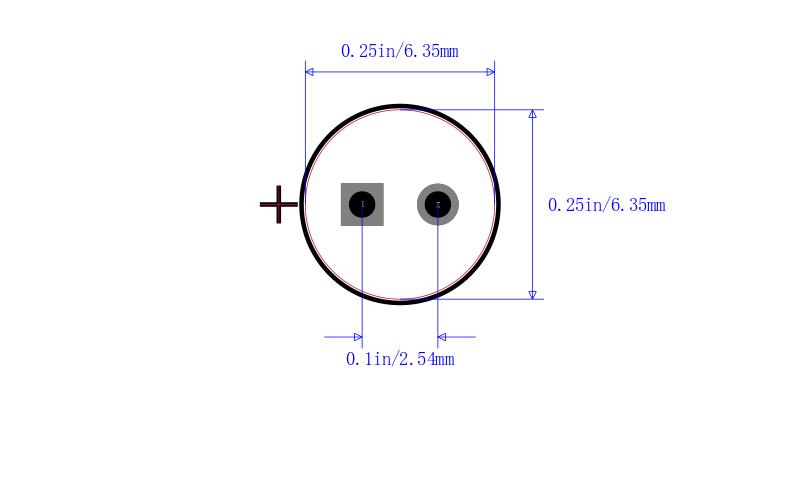

封装 Radial, CAN
长度 8.89 mm
高度 8.89 mm
直径 6.35 mm
脚长度 0.17 in
封装 Radial, CAN
工作温度 -55℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
