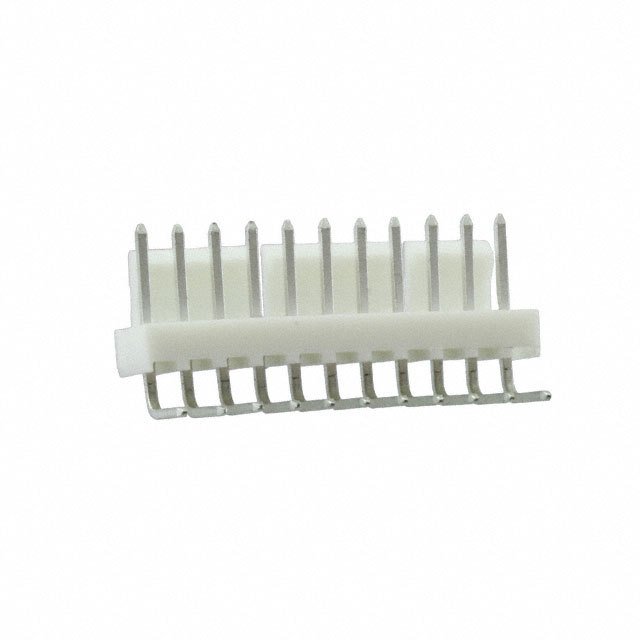

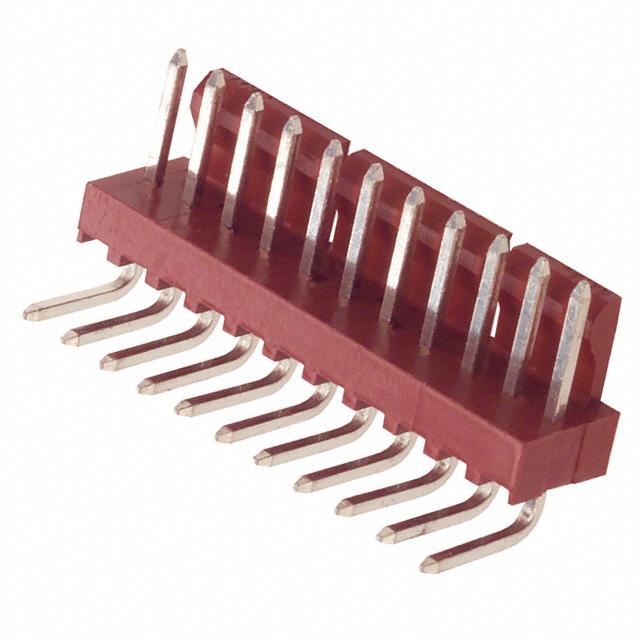

2.54毫米（ .100 ）间距KK®固体头，直角，用摩擦锁， 11电路，锡（Sn ）镀层 2.54mm .100 Pitch KK® Solid Header, Right Angle, with Friction Lock, 11 Circuits, Tin Sn Plating
针座 通孔，直角 11 位置 0.100"（2.54mm）
得捷:
CONN HEADER R/A 11POS 2.54MM
艾睿:

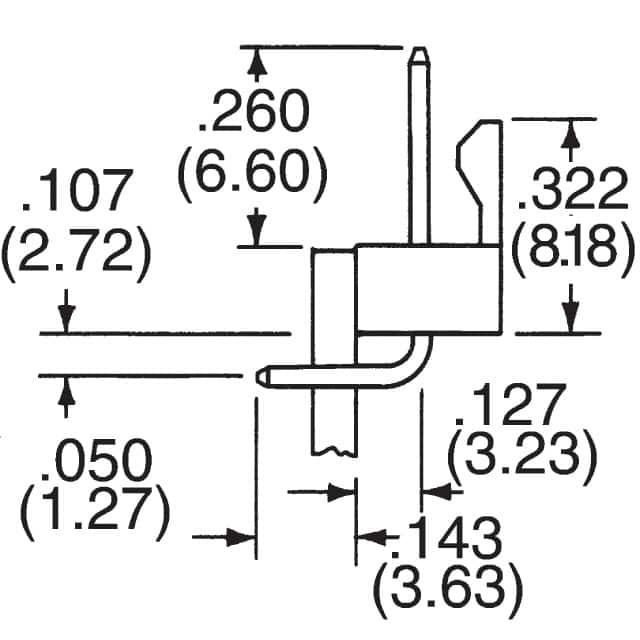

Thanks to Molex&s;s wire to board 0022053111 header connector, you can reduce the possibility of accidentally shorting out any pins on your printed circuit. This HDR connector&s;s 11 contacts that are made out of brass and plated with tin over copper. Its pitch is 2.54 mm. This is a 1-row connector. It has a right angle body orientation. It has a header type gender. It has a maximum voltage rating of 250 V. This device has a maximum current rating of 4 A/contact. 0022053111 is housed in white nylon. This connector has an operating temperature of -40 to 80 °C. It uses the solder termination method. This product is 27.94 mm long, 6.35 mm tall and 12.83 mm deep.
安富利:
Conn Wire to Board HDR 11 POS 2.54mm Solder RA Thru-Hole Bag
