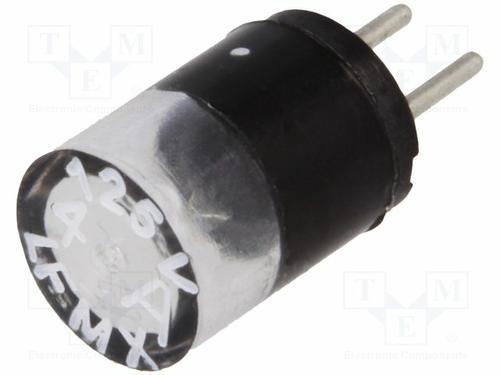

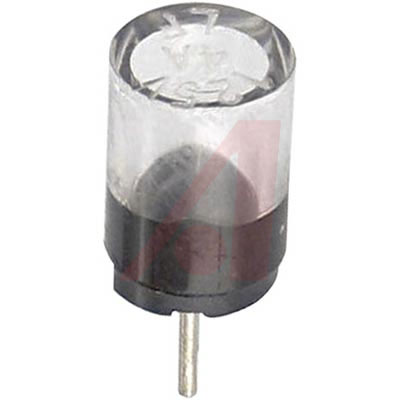

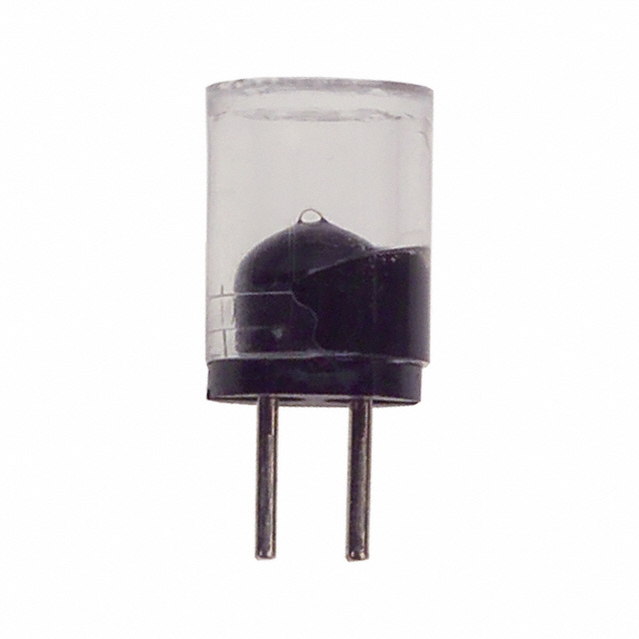

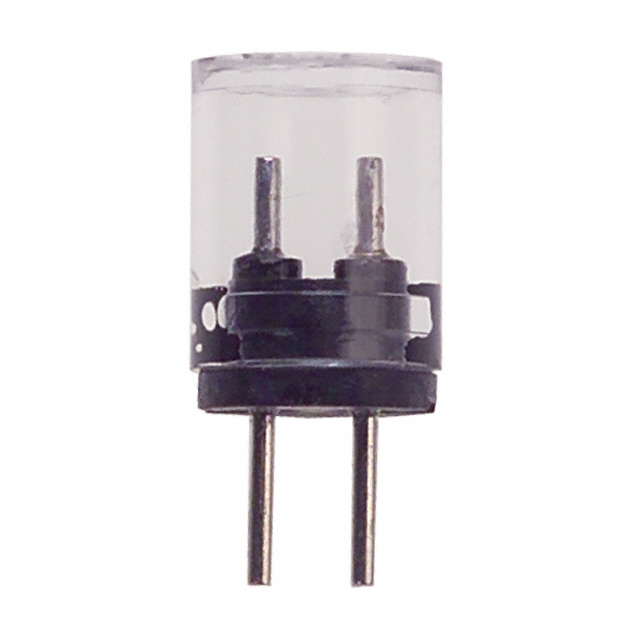

0273004.H

Electric Fuse, Very Fast Blow, 4A, 125VAC, 125VDC, 10000A IR, Through Hole, MICRO

Very fast-acting. Ideal for printed circuits. Features low resistance and high reliability in ultrafast blowing characteristics. Series 279000 has 1" leads for wiring into circuit. Short circuit interrupting capacity 125 volts, 10,000 amps AC. Series 273000 has 0.170 leads for plugging into subminiature fuse holder.

.

*Blowing Specifications:** 100% — 4 hours minimum; 200% — 5 second maximum; transparent plastic cap. 125 V rating. UL Recognized. CSA Certified.

艾睿:

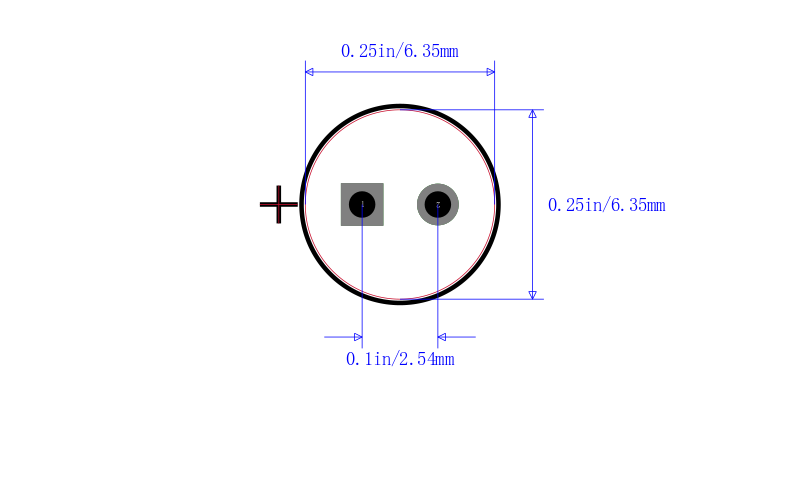

A great alternative to a circuit breaker, this a subminiature 0273004.H fuse from Littelfuse will protect your electronics. This device has a current rating of 4. This fuse has a minimum operating temperature of -55 °C and a maximum of 85 °C. It has 2 terminals. The 0273004.H fuse has a radial termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 125 VAC and the maximum DC voltage rating is 125 VDC. This product is 8.89 mm tall with a diameter of 6.35 mm.

Allied Electronics:
Fuse; Submin; Very Fast Acting; 4A; Supplemental; Dims 0.25x0.35"; Plug-In; 125VAC/VDC

Chip1Stop:
Fuse Subminiature Very Fast Acting 4A 125V Radial 6 X 8mm Bulk

TME:
Fuse: fuse; ultra rapid; 4A; 125VAC; 125VDC; TR3

Verical:
Fuse Micro Very Fast Acting 4A 125V Radial 6 X 8mm Bulk CSA

Newark:
# LITTELFUSE  0273004.H  Fuse, PCB Leaded, 4 A, 125 VAC, MICRO Series, 125 VDC, Very Fast Acting, Radial Leaded

Win Source:
FUSE BOARD MNT 4A 125VAC/VDC RAD / 4 A 125 V AC 125 V DC Fuse Board Mount Cartridge Style Excluded Through Hole Radial, Can, Vertical
