0459713115

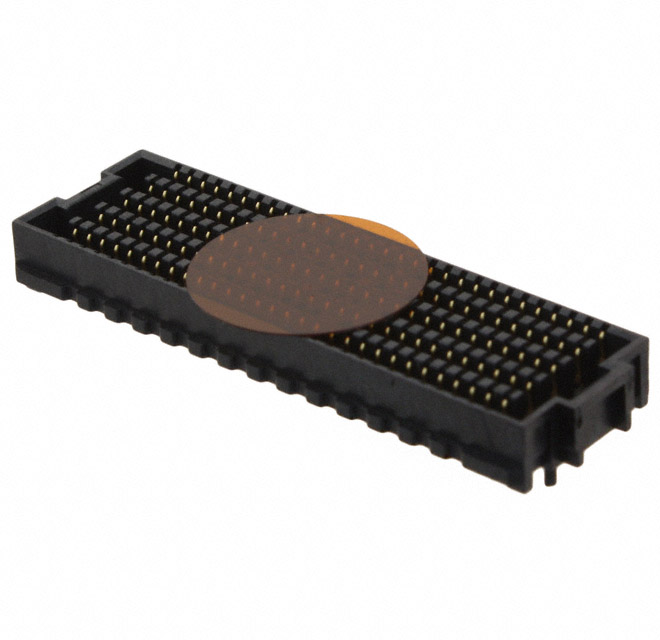

1.27毫米（ .050 “ ）由1.27毫米（ .050 ” ）间距SEARAY *插座， 300电路， 5.00毫米（ 0.196 “ ）未交配高度， 10行，带销，焊接费用™无铅 1.27mm .050" by 1.27mm .050" Pitch SEARAY* Receptacle, 300 Circuits, 5.00mm .196" Unmated Height, 10 Rows, With Pegs, Solder Charge™ Lead Free

300 Position Connector High Density Array, Female Surface Mount Gold

得捷:
CONN HD ARRAY RCPT 300P SMD GOLD

艾睿:
This board to board 0459713115 header connector from Molex reduces the possibility of accidentally shorting pins when a board is being used. This RCP connector&s;s 300 contacts that are made out of copper alloy and plated with gold over nickel. It has a maximum voltage rating of 240 VAC. It has a receptacle type gender. This is a 10-row connector. Its pitch is 1.27 mm. It has a straight body orientation. This device has a maximum current rating of 2.7 A/contact. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This connector has an operating temperature of -55 to 125 °C. This product is 45.26 mm long, 5 mm tall and 14.68 mm deep. It uses the solder termination method. 0459713115 is housed in black liquid crystal polymer.
