轴向引线和墨盒保险丝 Axial Lead & Cartridge Fuses

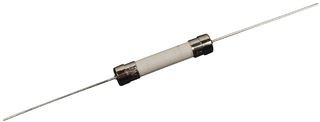

Be protected by adding a miniature fuse developed by . This device has a current rating of 25. This fuse has an operating temperature range of -55 °C to 125 °C. It has 2 terminals. The 0505025.MXEP fuse has an axial termination style. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 500 VAC and the maximum DC voltage rating is 500 VDC. This product is 32.72 mm long with a diameter of 6.99 mm. Its fuse is made from ceramic.
额定电压DC 500 V
额定电压AC 500 V
额定电流 25 A
电阻 0.0048 Ω
工作温度Max 125 ℃
工作温度Min -55 ℃
额定电压 500 V
额定电压DC Max 500 V
额定电压AC Max 500 V
引脚数 2
封装 3AB, 3AG, 1/4" x 1-1/4" Axial
长度 32.72 mm
封装 3AB, 3AG, 1/4" x 1-1/4" Axial
工作温度 55℃ ~ 125℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2014/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
0505025.MXEP Littelfuse 力特 | 当前型号 | 当前型号 |
0505025.MXP 力特 | 完全替代 | 0505025.MXEP和0505025.MXP的区别 |
