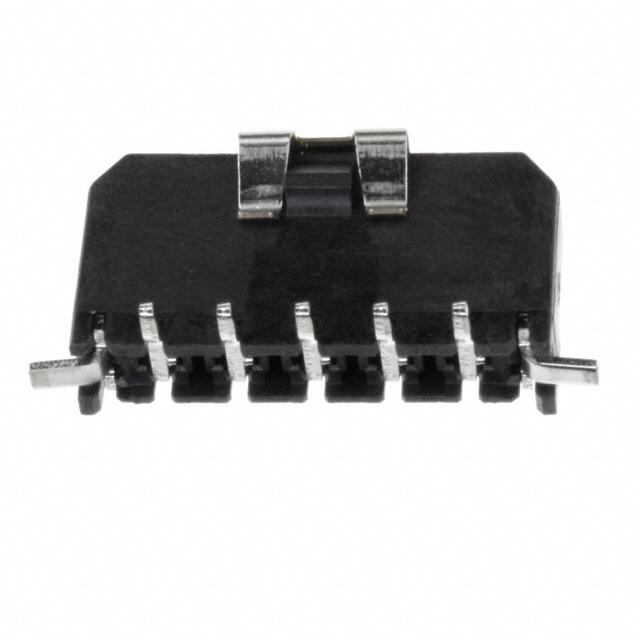

0436500524图片1
0436500524图片2
0436500524图片3
0436500524图片4
0436500524概述

3.00毫米( 0.118 “ )间距微飞度3.0头,表面贴装兼容,单列,立式,带焊片 3.00mm .118" Pitch Micro-Fit 3.0 Header, Surface Mount Compatible, Single Row, Vertical, with Solder Tab

Connecting an electronic device to a power supply has never been easier with this power connector from . This HDR connector"s 5 contacts that are made out of brass alloy and plated with bright tin over nickel. It has a maximum voltage rating of 600 V. Its pitch is 3 mm. It has a header type gender. This connector has a single port. It has a straight body orientation. This device has a maximum current rating of 5 A/contact. 0436500524 is housed in liquid crystal polymer. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This power connector has a minimum operating temperature of -40 °C and a maximum of 105 °C. This product is 22.64 mm long, 9.9 mm tall and 5.57 mm deep. Its 5 terminals use the solder termination method.

0436500524中文资料参数规格
技术参数

触点数 5

排数 1

针脚数 5

拔插次数 30

额定电流Max 8.5A/触头

工作温度Max 105 ℃

工作温度Min -40 ℃

额定电压Max 600 V

接触电阻Max 10 mΩ

封装参数

安装方式 Surface Mount

外形尺寸

高度 9.9 mm

物理参数

外壳颜色 Black

触点材质 Brass Alloy

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

制造应用 通用,医疗,军事,电信

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买0436500524
型号: 0436500524
制造商: Molex 莫仕
描述:3.00毫米( 0.118 “ )间距微飞度3.0头,表面贴装兼容,单列,立式,带焊片 3.00mm .118" Pitch Micro-Fit 3.0 Header, Surface Mount Compatible, Single Row, Vertical, with Solder Tab
