04025D332KAT2A

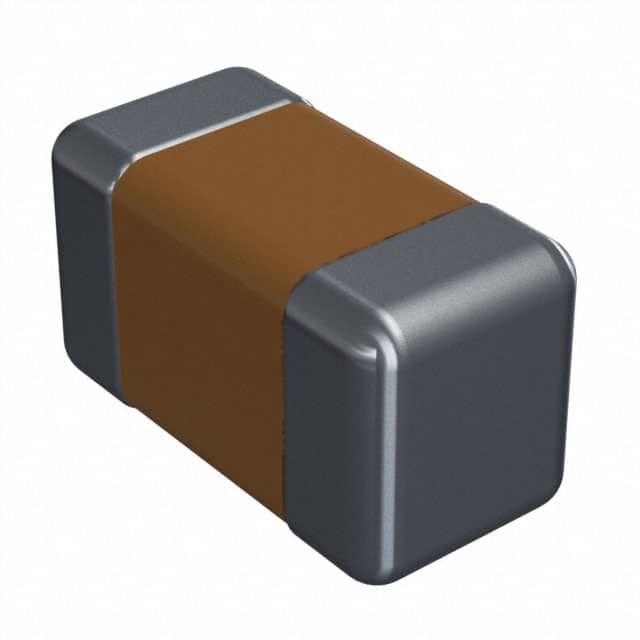

04025D332KAT2A图片1

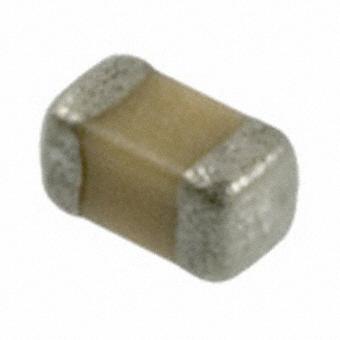

04025D332KAT2A图片2
04025D332KAT2A图片3
04025D332KAT2A图片4
04025D332KAT2A图片5
04025D332KAT2A概述

0402 3.3nF ±10% 50V X5R

3300 pF ±10% 50V 陶瓷器 X5R 0402(1005 公制)


得捷:
CAP CER 3300PF 50V X5R 0402


艾睿:
With alternating layers of ceramic acting as the dielectric and electrodes, this 04025D332KAT2A multilayer ceramic capacitor from AVX achieves a large capacitance in a small package. It can withstand a voltage of 50 VDC. This MLCC capacitor has a maximum operating temperature of 85 °C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. It has a tolerance of 10%. This product is 1 mm long, 0.56Max mm tall and 0.5 mm deep. Its capacitance value is 0.0033uF.


安富利:
Cap Ceramic 0.0033uF 50V X5R 10% SMD 0402 85°C Paper T/R


Chip1Stop:
Cap Ceramic 0.0033uF 50V X5R 10% SMD 0402 85℃ Paper T/R


04025D332KAT2A中文资料参数规格
技术参数

额定电压DC 50.0 V

电容 0.0033 µF

容差 ±10 %

电介质特性 X5R

工作温度Max 85 ℃

工作温度Min -55 ℃

额定电压 50 V

封装参数

安装方式 Surface Mount

封装公制 1005

封装 0402

外形尺寸

长度 1 mm

宽度 0.5 mm

高度 0.56 mm

封装公制 1005

封装 0402

物理参数

材质 X5R/-55℃~+85℃

工作温度 -55℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

最小包装 10000

制造应用 通用

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

04025D332KAT2A引脚图与封装图
04025D332KAT2A引脚图
04025D332KAT2A封装图
04025D332KAT2A封装焊盘图
在线购买04025D332KAT2A
型号: 04025D332KAT2A
制造商: AVX 艾维克斯
描述:0402 3.3nF ±10% 50V X5R
替代型号04025D332KAT2A
型号/品牌 代替类型 替代型号对比

04025D332KAT2A

AVX 艾维克斯

当前型号

当前型号

LD025D332KAB2A

艾维克斯

功能相似

04025D332KAT2A和LD025D332KAB2A的区别
