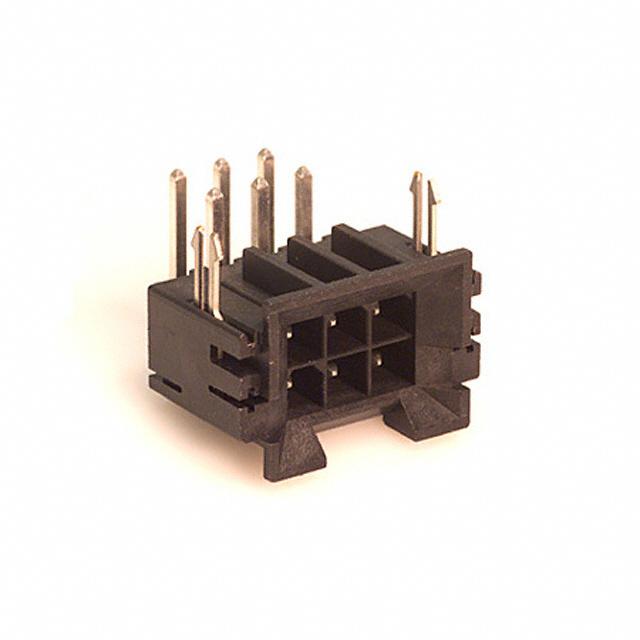

Conn Power M 6POS 4.2mm Solder RA Thru-Hole 6 Terminal 1Port Mini-Fit BMI Tray
针座 通孔，直角 6 位置 0.165"（4.20mm）
得捷:
CONN HEADER R/A 6POS 4.2MM
艾睿:
This 0438100002 power connector from Molex comes in a variety of types to support AC or DC power entry modules. This M connector&s;s 6 contacts that are made out of brass and plated with tin over nickel. This connector has a single port. Its pitch is 4.2 mm. It has a right angle body orientation. It has a male type gender. It has a maximum voltage rating of 600 V. This device has a maximum current rating of 13 A/contact. 0438100002 is housed in thermoplastic. This component will be shipped in tray format. Its 6 terminals use the solder termination method. This power connector has an operating temperature range of -40 °C to 105 °C. This product is 23.01 mm long, 15 mm tall and 20.69 mm deep.
安富利:
Conn Wire to Board M 6 POS 4.2mm Solder RA Thru-Hole Tray
Chip1Stop:
Conn Wire to Board M 6 POS 4.2mm Solder RA Thru-Hole Tray
Verical:
Conn Power M 6 POS 4.2mm Solder RA Thru-Hole 6 Terminal 1 Port Mini-Fit® BMI Tray
