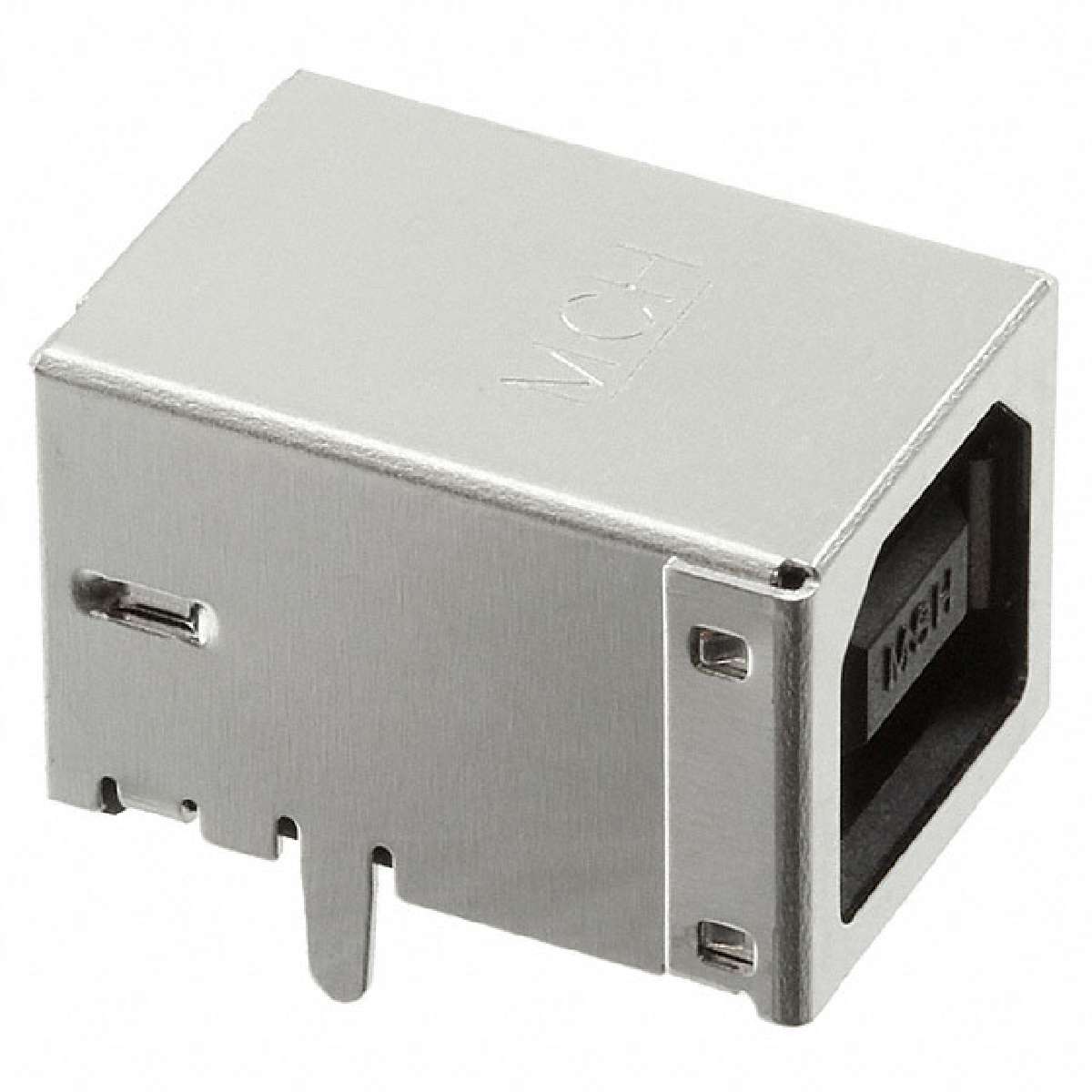

通用串行总线（ USB ） ，屏蔽式I / O ， B型插座，直角与StraightTabs ，颜色黑色， 0.76μm （ 30μ “），金（Au ），电镀，托盘包装，无铅 Universal Serial Bus USB, Shielded I/O, Type B Receptacle, Right Angle with StraightTabs, Color Black, 0.76μm 30μ" Gold Au Plating, Tray Pack, Lead Free
Use the usb type b audio and video connector from for your design to run audio and video. This RCP connector"s 4 contacts that are made out of phosphor bronze and plated with gold over nickel. This connector has a single port. It has a right angle body orientation. It has a maximum voltage rating of 30 VAC. It has a receptacle type gender. Its pitch is 2.5 mm. This device has a maximum current rating of 1.5 A/contact. 0670688011 is housed in nylon. The item will be shipped in tray orientation. Its 4 terminals use the solder termination method. This product is 12 mm long, 11 mm tall and 17 mm deep. This part has a minimum operating temperature of 0 °C and a maximum of 50 °C.
