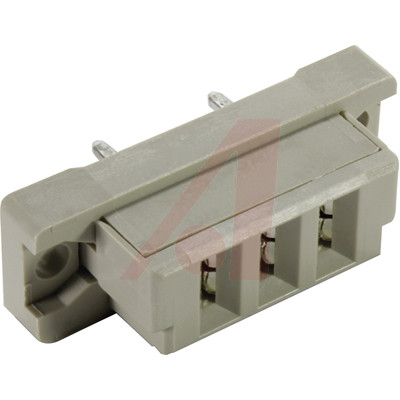

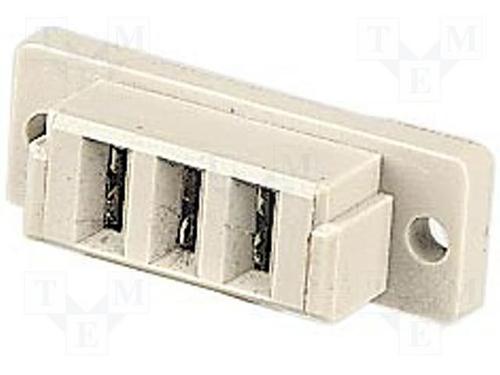

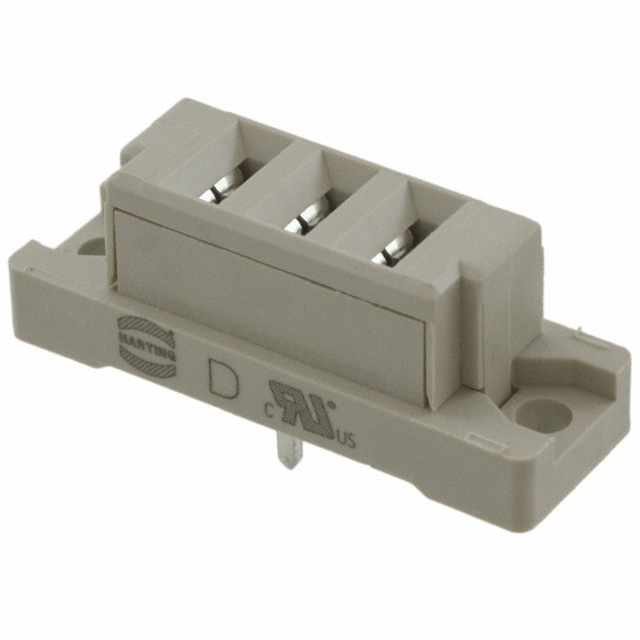

3 位置 焊针 5.08 mm 直 母头 DIN-Power 连接器
Solder Harting"s din 41612 backplane connector to your printed circuit board to allow for fast serial bus communication between multiple boards. This F connector has 3 F contacts. Its pitch is 10.16 mm. It has a female type gender. It has a straight body orientation. This is a 1-row connector. This device has a maximum current rating of 15 A. This product is 31.4 mm long, 11.6 mm tall and 10.5 mm deep. It uses the solder termination method.
触点数 3
极性 Female
触点电镀 Silver
额定电流 15 A
绝缘电阻 1000000 MΩ
排数 1
方向 Straight
易燃性等级 UL 94 V-0
针脚数 3
拔插次数 500
额定电流Max 15 A
接触电阻Max 8 mΩ
安装方式 Through Hole
引脚数 3
封装 -
引脚间距 5.08 mm
长度 31.4 mm
宽度 10.5 mm
高度 11.6 mm
封装 -
引脚间距 5.08 mm
触点材质 Copper Alloy
工作温度 -55℃ ~ 125℃
外壳材质 Thermoplastic
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
